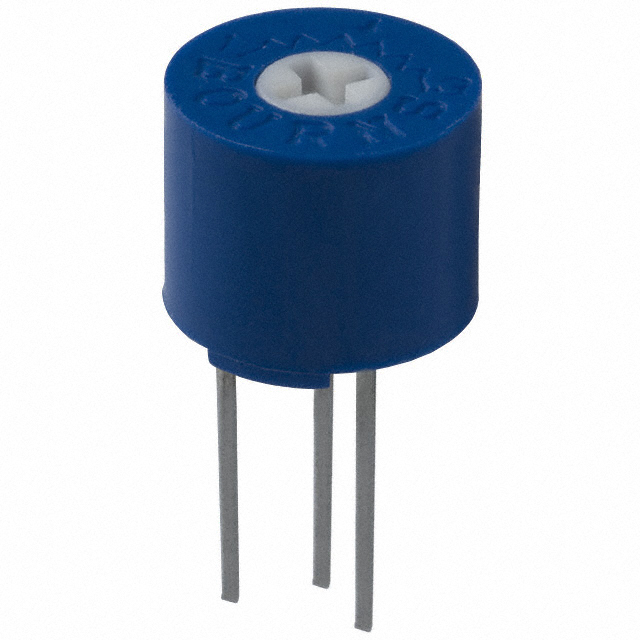

3339H-1-102

Active

Bourns Inc.

RES CERMET TRIMMER 1K OHM 10% 0.5W(1/2W) 4(ELEC)TURN (7.62 X 6.35MM) PIN THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Bourns Inc.

RES CERMET TRIMMER 1K OHM 10% 0.5W(1/2W) 4(ELEC)TURN (7.62 X 6.35MM) PIN THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Adjustment Type	Resistance	Mounting Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistive Material	Termination Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance
Bourns Inc. 3339H-1-102	4	Top Adjustment	1000 Ohms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-500	4	Top Adjustment	50 Ohms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-100	4	Top Adjustment	10 Ohms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-200	4	Top Adjustment	20 Ohms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-104	4	Top Adjustment	100 kOhms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-101	4	Top Adjustment	100 Ohms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-101LF	4	Top Adjustment	100 Ohms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-200LF	4	Top Adjustment	20 Ohms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-105	4	Top Adjustment	1 MOhms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %
Bourns Inc. 3339H-1-201	4	Top Adjustment	200 Ohms	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	PC Pins	0.3 in	7.62 mm	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 5.82

General part information

1 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 4.0 Turn Top Adjustment
