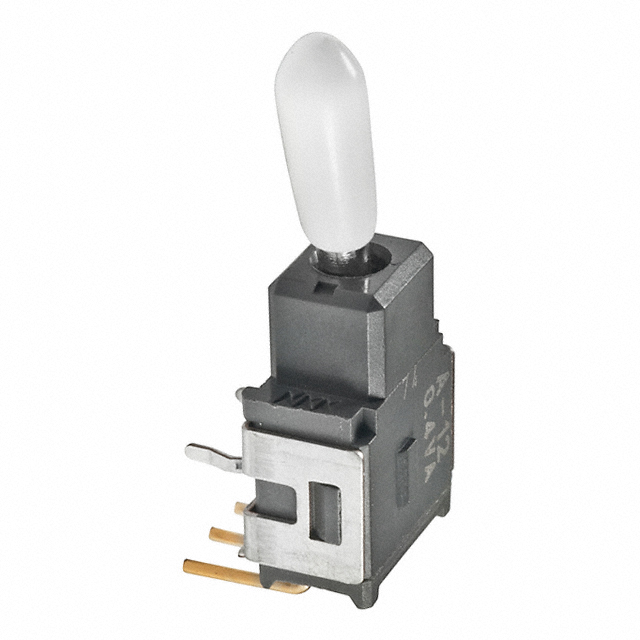

A12AH-GB

Active

NKK Switches

PROCESS SEALED SUBMINIATURE TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	A12AH-GB

Actuator Length [x]	10 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round with Cap
Bushing Thread	Unthreaded, Square
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	White Cap
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Circuit	Features	Actuator Type	Termination Style	Current Rating (Amps)	Illumination	Bushing Thread	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Electrical Life	Actuator Length [x]	Voltage Rating - AC	Actuator Material	Switch Function
NKK Switches A12AH-GB	SPDT	White Cap	Standard Round with Cap	PC Pin	0.4 VA	Non-Illuminated	Unthreaded Square	Through Hole Right Angle	-30 ░C	85 °C	28 V	50000 Cycles	10 mm	28 V	Glass Filled Nylon Polyamide (PA)	On-On
NKK Switches A12AH-GA	SPDT	Black Cap	Standard Round with Cap	PC Pin	0.4 VA	Non-Illuminated	Unthreaded Square	Through Hole Right Angle	-30 ░C	85 °C	28 V	50000 Cycles	10 mm	28 V	Glass Filled Nylon Polyamide (PA)	On-On
NKK Switches A12AH-GC	SPDT	Red Cap	Standard Round with Cap	PC Pin	0.4 VA	Non-Illuminated	Unthreaded Square	Through Hole Right Angle	-30 ░C	85 °C	28 V	50000 Cycles	10 mm	28 V	Glass Filled Nylon Polyamide (PA)	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle
