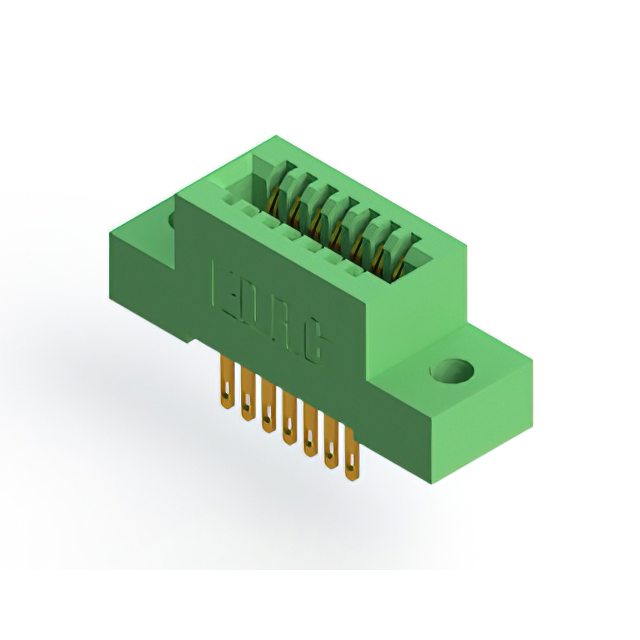

325-014-500-209
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325-014-500-209
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-014-500-209 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 0.16 in |
| Flange Feature [diameter] | 4.06 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
325-014 Series
| Part | Card Type | Material - Insulation | Read Out | Card Thickness | Card Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Termination Rows | Contact Material | Pitch [x] | Pitch [x] | Contact Finish | Gender | Contact Type | Color | Number of Positions/Bay/Row [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Single | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 1 | 14 | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | Solder | 1 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 14 | Through Hole |
EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | Dual | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 2 | 14 | Flush Mount M3 Threaded Insert Top Opening | Solder | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 7 | Through Hole | ||
EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | Dual | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 2 | 14 | Solder | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 7 | Through Hole | |||
EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | Dual | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 2 | 14 | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | Wire Wrap | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 7 | Through Hole |
EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | Dual | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 2 | 14 | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 7 | Through Hole | ||
EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | Dual | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 2 | 14 | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 7 | Through Hole | ||
EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | Dual | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 2 | 14 | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | Solder Eyelet(s) | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 7 | Through Hole |
EDAC Inc. | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Single | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 1 | 14 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 1 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 14 | Through Hole | ||
EDAC Inc. | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Single | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 1 | 14 | Wire Wrap | 1 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 14 | Through Hole | |||
EDAC Inc. | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Single | 3.18 mm | 0.125 in | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 1 | 14 | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | Wire Wrap | 1 | Copper Alloy | 2.54 mm | 0.1 in | Gold | Female | Cantilever | Green | 14 | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.58 | |
Description
General part information
325-014 Series
14 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
