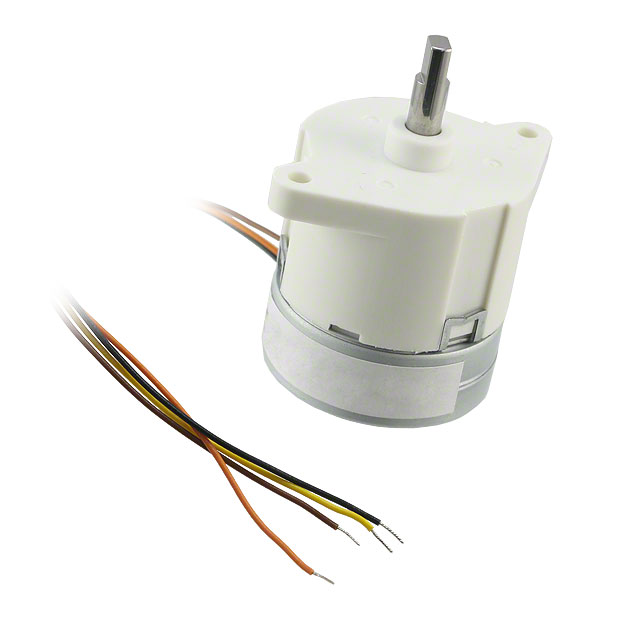

PG35S-D48-HHC2
ActiveNMB TECHNOLOGIES
MOTOR /BIPOLOR GEAR RATIO 1/35.4 SIZE MM 35X38.5 RATE CURRENT (A) 0.50 RESISTANCE 8.00
Deep-Dive with AI
Search across all available documentation for this part.
PG35S-D48-HHC2
ActiveNMB TECHNOLOGIES
MOTOR /BIPOLOR GEAR RATIO 1/35.4 SIZE MM 35X38.5 RATE CURRENT (A) 0.50 RESISTANCE 8.00
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PG35S-D48-HHC2 |
|---|---|
| Coil Resistance | 28 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 0.25 A |
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Features | Double Flatted Shaft |
| Length - Shaft and Bearing [x] | 18 mm |
| Length - Shaft and Bearing [x] | 0.709 in |
| Mounting Hole Spacing | 42 mm |
| Mounting Hole Spacing | 1.65 in |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Step Angle | 0.212 ° |
| Steps per Revolution | 1698 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 700 mNm |
| Torque - Holding (oz-in / mNm) | 99.1 oz-in |
| Type | Permanent Magnet Gear Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PG35S Series
Bipolar Stepper Motor Permanent Magnet Gear Motor Frame Size 1698.0 Step 250 mA 24VDC
