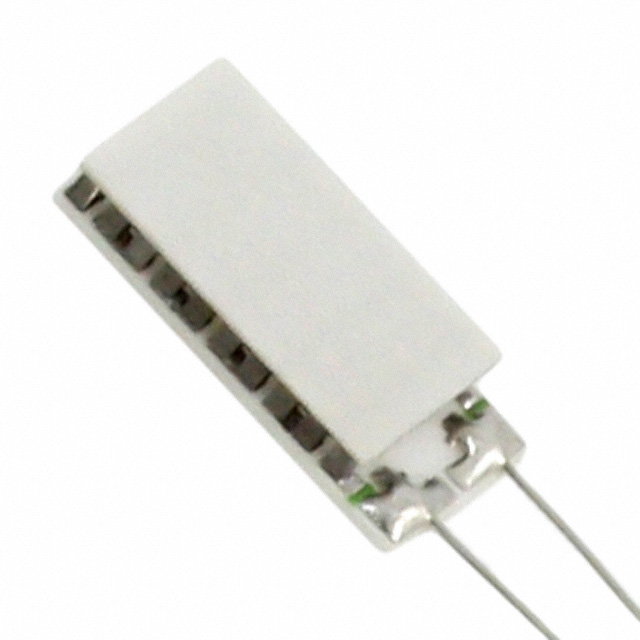

430264-503

Laird Thermal Systems, Inc.

PELTIR OT20,30,F2A,0610,11,W2.25

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIR OT20,30,F2A,0610,11,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Voltage - Max [Max]	Resistance	Features	Height [z]	Qmax @ Th	Number of Stages	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature
Laird Thermal Systems, Inc. 430264-502	67 °C	3.4 V	1.57 Ohms	Lead Wires Non-Sealed	2.06 mm	4.1 W	1	2 A	12.3 mm	6.2 mm	80 °C
Laird Thermal Systems, Inc. 430264-504	67 °C	3.4 V	1.57 Ohms	Lead Wires Sealed - Epoxy	1.8 mm	4.1 W	1	2 A	12.3 mm	6.2 mm	80 °C
Laird Thermal Systems, Inc. 430264-503	67 °C	3.4 V	1.57 Ohms	Lead Wires Non-Sealed	1.8 mm	4.1 W	1	2 A	12.3 mm	6.2 mm	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.75

General part information

Peltier Module 4.1W @ 25°C 2 A 80°C
