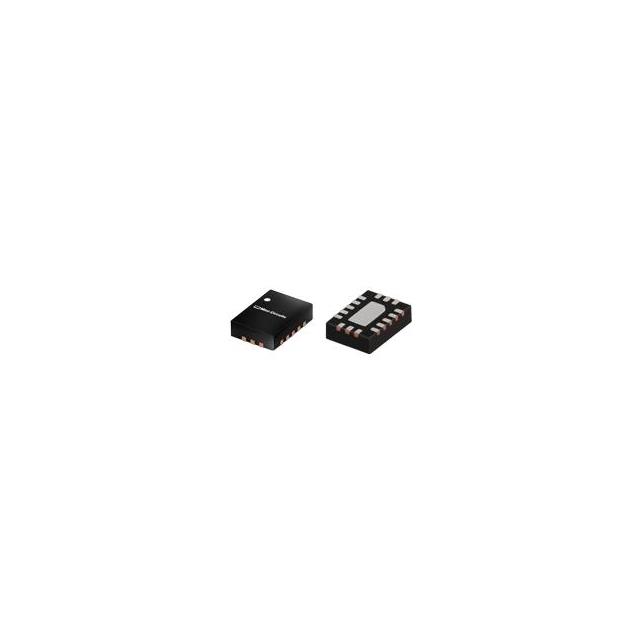

MBT-283+
ActiveMINI-CIRCUITS
50 OHM WIDEBAND, 1.5 TO 28 GHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MBT-283+
ActiveMINI-CIRCUITS
50 OHM WIDEBAND, 1.5 TO 28 GHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MBT-283+ |
|---|---|
| Frequency [Max] | 28 GHz |
| Frequency [Min] | 1.5 GHz |
| Function | Bias Tee |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| RF Type | General Purpose |
| Secondary Attributes | 30 dBm |
| Supplier Device Package | 16-MCLP |
| Supplier Device Package [x] | 3.5 |
| Supplier Device Package [y] | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 30.35 | |
| 10 | $ 28.90 | |||
| 20 | $ 27.53 | |||
| 50 | $ 23.39 | |||
| 100 | $ 20.63 | |||
| 200 | $ 17.87 | |||
| 500 | $ 16.31 | |||
| Digi-Reel® | 1 | $ 30.35 | ||
| 10 | $ 28.90 | |||
| 20 | $ 27.53 | |||
| 50 | $ 23.39 | |||
| 100 | $ 20.63 | |||
| 200 | $ 17.87 | |||
| 500 | $ 16.31 | |||
| Tape & Reel (TR) | 2000 | $ 15.38 | ||
Description
General part information
MBT-2 Series
RF IC Bias Tee General Purpose 1.5GHz ~ 28GHz 30dBm RF Input Power 16-MCLP (3.5x2.5)
