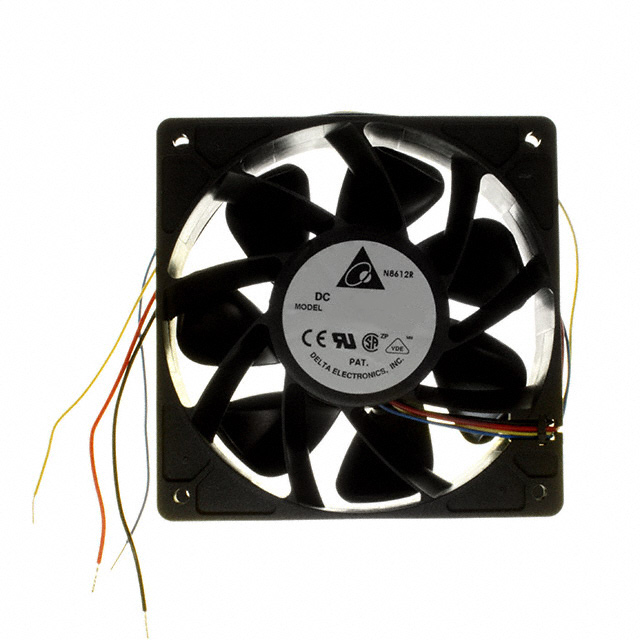

QFR1212EHE

NRND

Delta Electronics

FAN AXIAL 120X38MM 12VDC WIRE

Search across all available documentation for this part.

NRND

Delta Electronics

FAN AXIAL 120X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Width [y]	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Air Flow	Air Flow	Current Rating (Amps)	RPM	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Fan Type	Material - Frame	Noise	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Power (Watts)	Lifetime @ Temp.	Weight	Weight	Termination
Delta Electronics QFR1212GHEXUM	38 mm	291.4 Pa	1.17 in H2O	10.8 VDC	12.6 VDC	Plastic	5.89 m³/min	210.4 CFM	1.8 A	6000 RPM	12 VDC	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial	Plastic	64 dB(A)	CE cURus VDE	120 mm	120 mm	Ball	21.6 W	70000 Hrs	330.22 g	0.728 lb	4 Wire Leads
Delta Electronics QFR1212GHE-SP01	38 mm	291.4 Pa	1.17 in H2O	8 VDC	13.2 VDC	Plastic	5.89 m³/min	210.4 CFM	1.8 A	6000 RPM	12 VDC	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial	Plastic	64 dB(A)	CE CSA UL VDE	120 mm	120 mm	Ball	21.6 W	50000 Hrs	330.22 g	0.728 lb	4 Wire Leads
Delta Electronics QFR1212EHE	38 mm	210.2 Pa	0.844 in H2O	8 VDC	13.2 VDC	Plastic	4.87 m³/min	173.8 CFM	1 A	5000 RPM	12 VDC	-10 °C	-10 °C	60 °C	60 °C		Tubeaxial	Plastic	59 dB(A)	CE CSA UL VDE	120 mm	120 mm	Ball	12 W	50000 Hrs	330.22 g	0.728 lb	2 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 173.8 CFM (4.87m³/min) 2 Wire Leads
