SGW10N60RUFDTM

Obsolete

ON Semiconductor

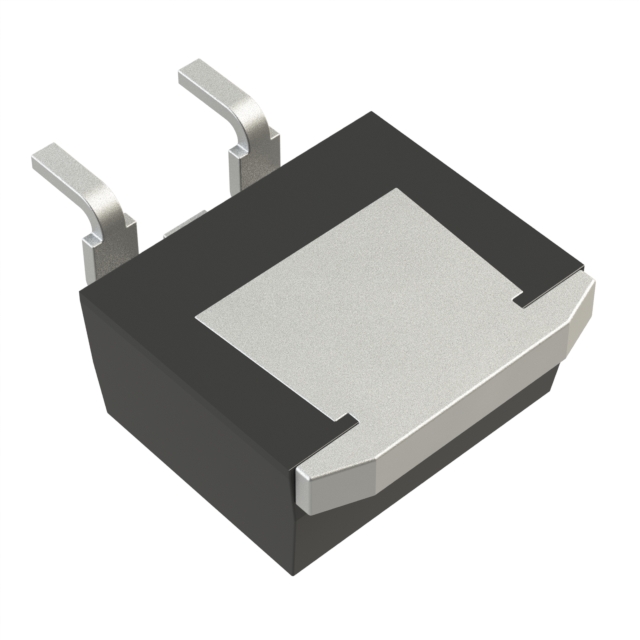

IGBT 600V 16A 75W D2PAK

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IGBT 600V 16A 75W D2PAK

Technical Specifications

Parameters and characteristics for this part

Specification	SGW10N60RUFDTM

Current - Collector (Ic) (Max) [Max]	16 A
Current - Collector Pulsed (Icm)	30 A
Gate Charge	30 nC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Power - Max [Max]	75 W
Reverse Recovery Time (trr)	60 ns
Supplier Device Package	TO-263 (D2PAK)
Switching Energy	215 µJ, 141 µJ
Td (on/off) @ 25°C	15 ns, 36 ns
Test Condition	20 Ohm, 10 A, 300 V, 15 V
Vce(on) (Max) @ Vge, Ic	2.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Switching Energy	Mounting Type	Supplier Device Package	Td (on/off) @ 25°C	Current - Collector (Ic) (Max) [Max]	Package / Case	Gate Charge	Reverse Recovery Time (trr)	Vce(on) (Max) @ Vge, Ic	Test Condition	Current - Collector Pulsed (Icm)	Power - Max [Max]
ON Semiconductor SGW10N60RUFDTM	600 V	-55 °C	150 °C	141 µJ 215 µJ	Surface Mount	TO-263 (D2PAK)	15 ns 36 ns	16 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	30 nC	60 ns	2.8 V	10 A 15 V 20 Ohm 300 V	30 A	75 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT 600 V 16 A 75 W Surface Mount TO-263 (D2PAK)
