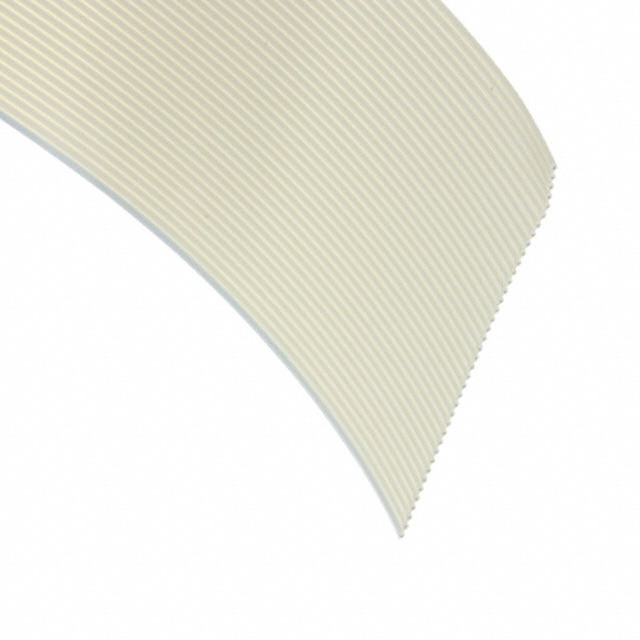

2010/40 100SF

Obsolete

3M (TC)

CBL RIBN 40COND 0.05 WHITE 25'

Deep-Dive with AI

Search across all available documentation for this part.

2010/40 100SF

Obsolete

3M (TC)

CBL RIBN 40COND 0.05 WHITE 25'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2010/40 100SF

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable, Splice Free
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)
Length	25 ft
Length	7.62 m
Number of Conductors	40
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20930
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	50.8 mm
Ribbon Width [y]	2 in
Shielding	Unshielded
Voltage	30 V
Wire Gauge	28 AWG

2010 Series

Part	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Conductor Material	Insulation Resistance	Features	Shielding	Pitch [x]	Pitch [x]	Ratings	First Conductor Mark	Wire Gauge	Cable Type	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width	Ribbon Width	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Number of Conductors	Length [x]	Length [x]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width
3M (TC) 2010/09 100SF	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Splice Free Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C	11.43 mm	0.45 in	7	36 AWG	7.62 m 15.24 m	25 ft 50 ft	9
3M (TC) 2010/30 100SF	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Splice Free Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C			7	36 AWG	7.62 m	25 ft	30	100 ft	30.48 m	38.1 mm	1.5 in
3M (TC) 2010/16 100SF	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Splice Free Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C			7	36 AWG	7.62 m 15.24 m	25 ft 50 ft	16	10 ft 100 ft	3.05 m 30.48 m	20.32 mm	0.8 in
3M (TC) 2010/37 100SF	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Splice Free Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C	46.99 mm	1.85 in	7	36 AWG	7.62 m 15.24 m	25 ft 50 ft	37	10 ft 100 ft	3.05 m 30.48 m
3M (TC) 2010/20 100	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C	1 in		7	36 AWG			20	100 ft	30.48 m			25.4 mm
3M (TC) 2010/26 100	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C	33.02 mm	1.3 "	7	36 AWG			26	100 ft	30.48 m
3M (TC) 2010/40 100SF	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Splice Free Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C			7	36 AWG	7.62 m	25 ft	40			50.8 mm	2 in
3M (TC) 2010/60 100SF	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Splice Free Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C	76.2 mm	3 in	7	36 AWG	7.62 m	25 ft	60	10 ft 100 ft	3.05 m 30.48 m
3M (TC) 2010/15 100SF	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Splice Free Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C	19.05 mm	0.75 "	7	36 AWG	7.62 m 15.24 m	25 ft 50 ft	15	100 ft	30.48 m
3M (TC) 2010/09 100	0.89 mm	0.035 in	Polyolefin (PO)	Copper Tinned	10 GOhm	Zippable	Unshielded	0.05 in	1.27 mm	UL Style 20930	Blue	28 AWG	Flat Cable	30 V	-20 C	105 ░C	11.43 mm	0.45 in	7	36 AWG			9	100 ft	30.48 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2010 Series

Flat Ribbon Cable White 40 Conductors 0.050" (1.27mm) Flat Cable 25.0' (7.62m)

Documents

Technical documentation and resources

No documents available
