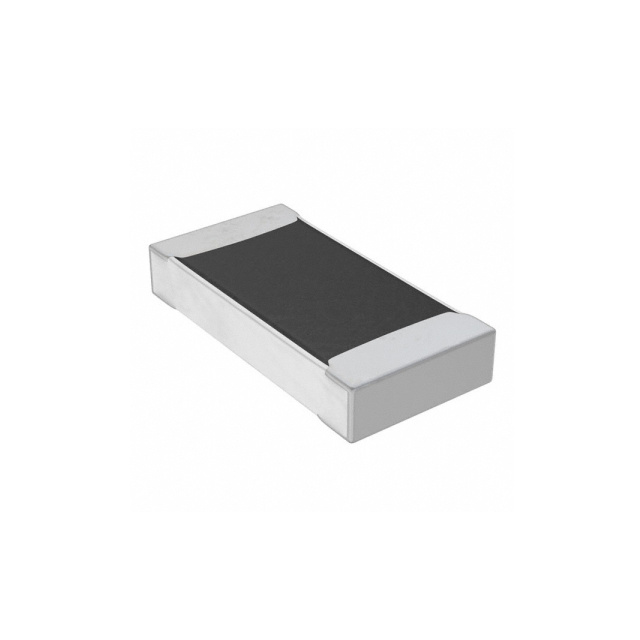

SFR18EZPJ000
ActiveRohm Semiconductor
3216(1206)SIZE, SULFUR TOLERANT CHIP JUMPER (AEC-Q200 QUALIFIED)
Deep-Dive with AI
Search across all available documentation for this part.
SFR18EZPJ000
ActiveRohm Semiconductor
3216(1206)SIZE, SULFUR TOLERANT CHIP JUMPER (AEC-Q200 QUALIFIED)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFR18EZPJ000 |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Anti-Sulfur |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Ratings | AEC-Q200 |
| Resistance | 0 Ohms |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Tolerance | Jumper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.09 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.05 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.03 | |||
| Tape & Reel (TR) | 5000 | $ 0.02 | ||
| 10000 | $ 0.02 | |||
| 15000 | $ 0.02 | |||
| 25000 | $ 0.02 | |||
| 35000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
| 125000 | $ 0.02 | |||
| 250000 | $ 0.02 | |||
| 500000 | $ 0.02 | |||
Description
General part information
SFR18EZPJ000 Series
ROHM's anti-sulfur chip resistors are featuring unique internal structure having high tolerance to sulfuric environments. This product is suitable for high-reliability sets and circuits.
