HR10B-10R-10SC(71)

Obsolete

Hirose Electric USA, Inc.

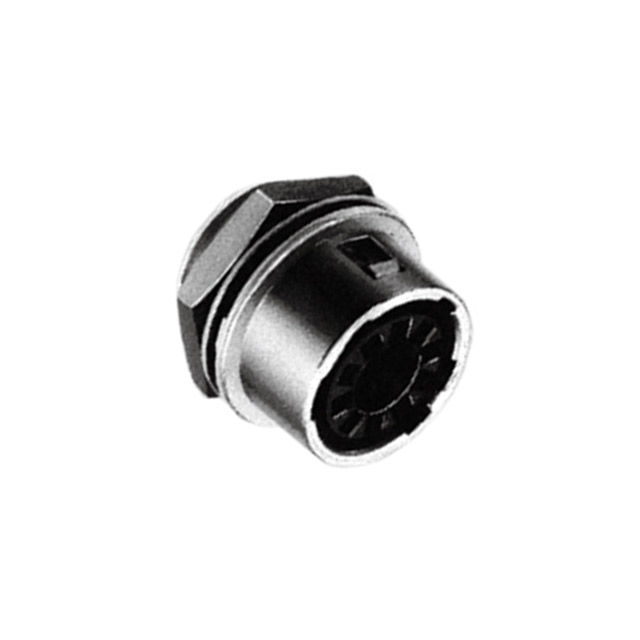

CONN RCPT HSG FMALE 11POS PNL MT

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSG FMALE 11POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	HR10B-10R-10SC(71)

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 Coaxial
Contact Size	1 mm
Contact Type	Crimp and Solder
Fastening Type	Push-Pull
Housing Color	Silver
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions [custom]	11
Number of Positions [custom]	1
Number of Positions [custom]	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	10
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Finish	Contact Type	Type	Contact Termination	Contact Material	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Shielding	Housing Color	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Features	Connector Type	Fastening Type	Mounting Type	Orientation	Contact Shape	Contact Size	Contact Size	Shell Material	Note	Shell Size - Insert	Mounting Feature
Hirose Electric USA, Inc. HR10B-2.5CJ(73)	Gold	Coax Pin Socket Center	Coaxial	Crimp Solder	Brass
Hirose Electric USA, Inc. HR10B-10P-10PC(73)		Crimp and Solder	For Male Pins			Polybutylene Terephthalate (PBT)	85 °C	-20 C	Nickel	Unshielded	Silver	UL94 V-0	11	1	10	Backshell Cable Clamp Coupling Nut Strain Relief	Plug Housing	Push-Pull	Free Hanging (In-Line)	Keyed	Circular	1 Coaxial	1 mm	Brass	Contacts Not Included	10
Hirose Electric USA, Inc. HR10B-10R-10SC(71)		Crimp and Solder	For Female Sockets			Polybutylene Terephthalate (PBT)	85 °C	-20 C	Nickel	Unshielded	Silver	UL94 V-0	11	1	10		Receptacle Housing	Push-Pull		Keyed	Circular	1 Coaxial	1 mm	Brass	Contacts Not Included	10	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

11 (10 + 1 Coax) Position Circular Connector Receptacle Housing Panel Mount
