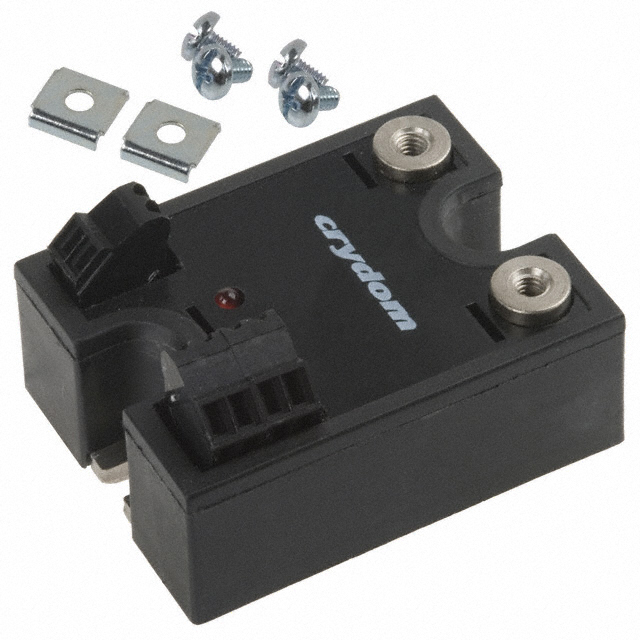

MCTC2490KLA
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 90A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
MCTC2490KLA
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 90A 24-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MCTC2490KLA |
|---|---|
| Approval Agency | CE |
| Load Current | 90 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Output Type | AC, Proportional Control |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 5 V |
| Voltage - Input [Min] | 0 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MCTC2490 Series
Solid State SPST-NO (1 Form A) Hockey Puck
