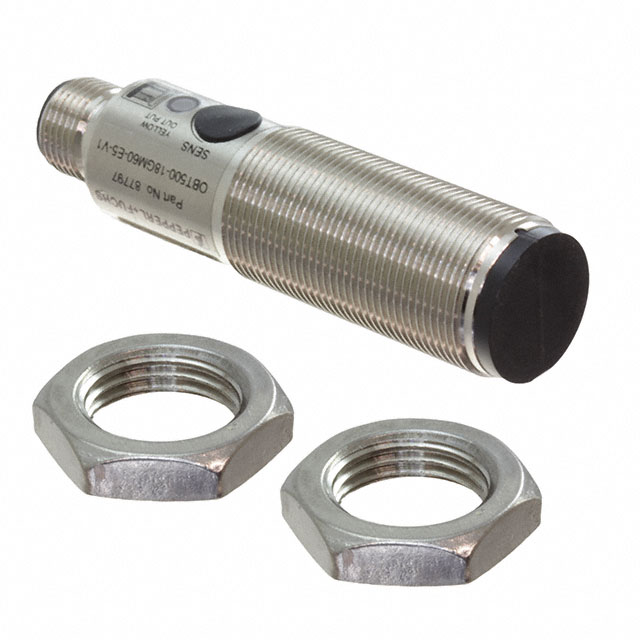

OBT500-18GM60-E5-V1

Obsolete

PEPPERL+FUCHS

DIFFUSED PHOTO SEN 0-500MM PNP

Search across all available documentation for this part.

Obsolete

PEPPERL+FUCHS

DIFFUSED PHOTO SEN 0-500MM PNP

Technical Specifications

Parameters and characteristics for this part

Specification	OBT500-18GM60-E5-V1

Adjustment Type	Adjustable
Connection Method	Connector, M12
Ingress Protection	IP67
Light Source	Infrared
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Open Collector, Light-ON\Dark-ON
Response Time	1 ms
Sensing Distance [Max]	19.685 in
Sensing Distance [Max]	500 mm
Sensing Distance [Min]	0 "
Sensing Distance [Min]	0 mm
Sensing Method	Diffuse
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Ingress Protection	Adjustment Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Response Time	Light Source	Sensing Method	Output Configuration
PEPPERL+FUCHS OBT500-18GM60-E5-V1	55 °C	-25 °C	Connector M12	IP67	Adjustable	30 VDC	10 VDC	19.685 in	0 "	0 mm	500 mm	1 ms	Infrared	Diffuse	PNP - Open Collector Light-ON\Dark-ON

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diffuse Optical Sensor 0.000" ~ 19.685" (0mm ~ 500mm) PNP - Open Collector, Light-ON\Dark-ON
