7950004-601
Laird Thermal Systems, Inc.

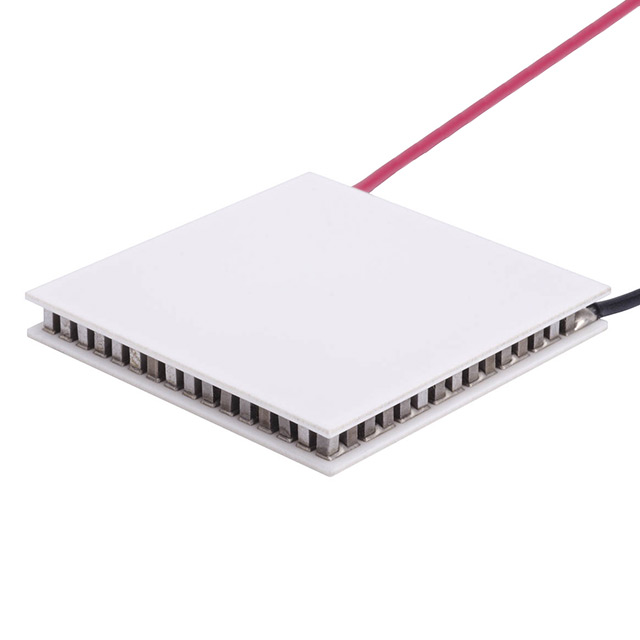

PELTIER MOD ZT4,12,F1,4040,TA,W8
Deep-Dive with AI
Search across all available documentation for this part.
7950004-601
Laird Thermal Systems, Inc.
PELTIER MOD ZT4,12,F1,4040,TA,W8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7950004-601 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 74 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 4.8 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 37 W |
| Resistance | 3.4 Ohms |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [y] | 40 mm |
| Voltage - Max [Max] | 15.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.04 | |
| 5 | $ 51.86 | |||
| 10 | $ 50.27 | |||
| 25 | $ 48.68 | |||
| 50 | $ 47.40 | |||
| 100 | $ 46.13 | |||
Description
General part information
7950004 Series
Peltier Module 37.0W @ 25°C 3.9 A 80°C
