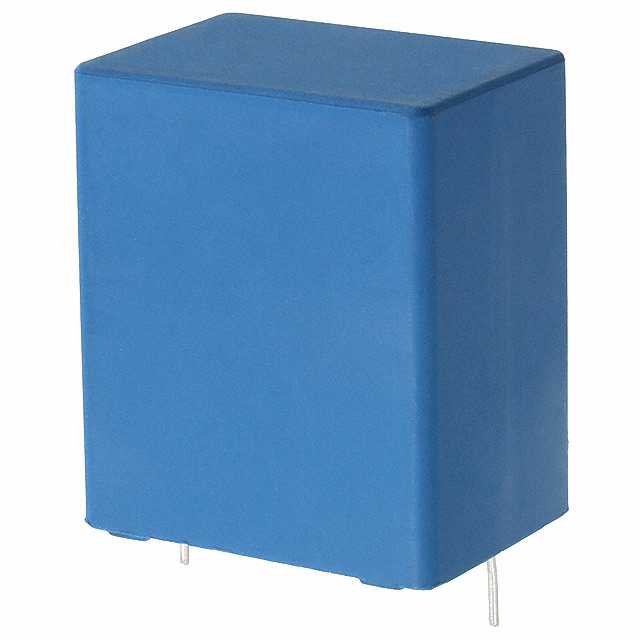

B32774D8126J000

Active

EPCOS - TDK Electronics

CAP FILM 12UF 5% 800VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B32774D8126J000

Active

EPCOS - TDK Electronics

CAP FILM 12UF 5% 800VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B32774D8126J000

Applications	DC Link, DC Filtering
Capacitance	12 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	6.8 mOhms
Features	Long Life
Height - Seated (Max) [Max] [z]	36.5 mm
Height - Seated (Max) [Max] [z]	1.437 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Size / Dimension [x]	1.24 in
Size / Dimension [x]	31.5 mm
Size / Dimension [y]	22 mm
Size / Dimension [y]	0.866 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	800 V

B32774D Series

Part	Lead Spacing	Lead Spacing	Features	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	ESR (Equivalent Series Resistance)	Voltage Rating - DC	Termination	Mounting Type	Applications	Dielectric Material	Package / Case	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
EPCOS - TDK Electronics B32774D8305K189	27.5 mm	1.083 in	Long Life	3 µF	-40 °C	105 ░C	21 mm	0.827 "	10 %	24.8 mOhms	800 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial
EPCOS - TDK Electronics B32774D1155K000	27.5 mm	1.083 in	Long Life	1.5 µF	-40 °C	105 ░C			10 %	31.3 mOhms	1300 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial	1.3 kV	21.5 mm	0.846 in	0.492 "	1.24 in	31.5 mm	12.5 mm
EPCOS - TDK Electronics B32774D4226K000	27.5 mm	1.083 in	Long Life	22 µF	-40 °C	105 ░C	36.5 mm	1.437 in	10 %	5.4 mOhms	450 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial				0.866 in	1.24 in	31.5 mm	22 mm
EPCOS - TDK Electronics B32774D0205K189	27.5 mm	1.083 in	Long Life	2 µF	-40 °C	105 ░C			10 %	26.3 mOhms	1100 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial	1.1 kV	21.5 mm	0.846 in	0.492 "	1.24 in	31.5 mm	12.5 mm
EPCOS - TDK Electronics B32774D1305J000	27.5 mm	1.083 in	Long Life	3 µF	-40 °C	105 ░C	27.5 mm	1.083 in	5 %	16 mOhm	1300 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial	1.3 kV			0.709 "	1.24 in	31.5 mm	18 mm
EPCOS - TDK Electronics B32774D8126J000	27.5 mm	1.083 in	Long Life	12 µF	-40 °C	105 ░C	36.5 mm	1.437 in	5 %	6.8 mOhms	800 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial				0.866 in	1.24 in	31.5 mm	22 mm
EPCOS - TDK Electronics B32774D0505J000	27.5 mm	1.083 in	Long Life	5 µF	-40 °C	105 ░C	30 mm	1.181 "	5 %	10.9 mOhms	1100 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial	1.1 kV
EPCOS - TDK Electronics B32774D1305K000	27.5 mm	1.083 in	Long Life	3 µF	-40 °C	105 ░C	27.5 mm	1.083 in	10 %	16 mOhm	1300 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial	1.3 kV			0.709 "	1.24 in	31.5 mm	18 mm
EPCOS - TDK Electronics B32774D8126K000	27.5 mm	1.083 in	Long Life	12 µF	-40 °C	105 ░C	36.5 mm	1.437 in	10 %	6.8 mOhms	800 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial				0.866 in	1.24 in	31.5 mm	22 mm
EPCOS - TDK Electronics B32774D0705K000	27.5 mm	1.083 in	Long Life	7 µF	-40 °C	105 ░C	36.5 mm	1.437 in	10 %	8.1 mOhms	1100 V	PC Pins	Through Hole	DC Filtering DC Link	Metallized Polypropylene (PP)	Radial	1.1 kV			0.866 in	1.24 in	31.5 mm	22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	784	$ 3.81

Description

General part information

B32774D Series

12 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
