2PD2150,115

Active

Freescale Semiconductor - NXP

TRANS NPN 20V 3A SOT89

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

TRANS NPN 20V 3A SOT89

Technical Specifications

Parameters and characteristics for this part

Specification	2PD2150,115

Current - Collector (Ic) (Max) [Max]	3 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	180 hFE
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	2 W
Qualification	AEC-Q100
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	20 V

Part	Qualification	Operating Temperature	Grade	Package / Case	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)
Freescale Semiconductor - NXP 2PD2150,115	AEC-Q100	150 °C	Automotive	TO-243AA	100 nA	3 A	500 mV	NPN	180 hFE	Surface Mount	2 W	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

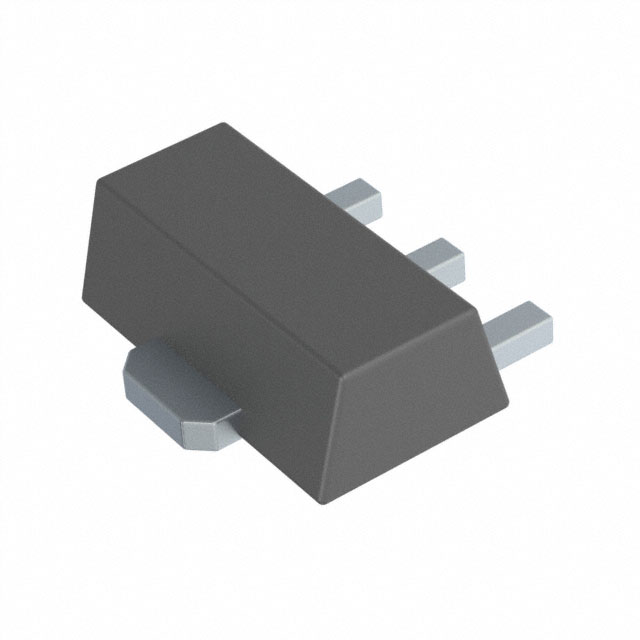

Bipolar (BJT) Transistor NPN 20 V 3 A 220MHz 2 W Surface Mount SOT-89
