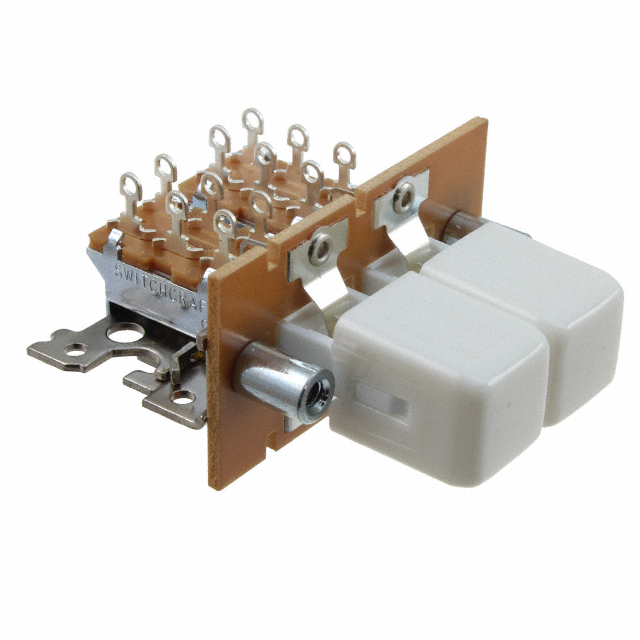

67021K506X
ActiveSwitchcraft Inc.
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
67021K506X
ActiveSwitchcraft Inc.
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 67021K506X |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | DPDT |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 3 A |
| Mounting Type | Panel Mount, Rear |
| Panel Cutout Dimensions [x] | 31.76 mm |
| Panel Cutout Dimensions [y] | 15.88 mm |
| Termination Style | Solder Lug |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
67021K Series
Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Rear
Documents
Technical documentation and resources
