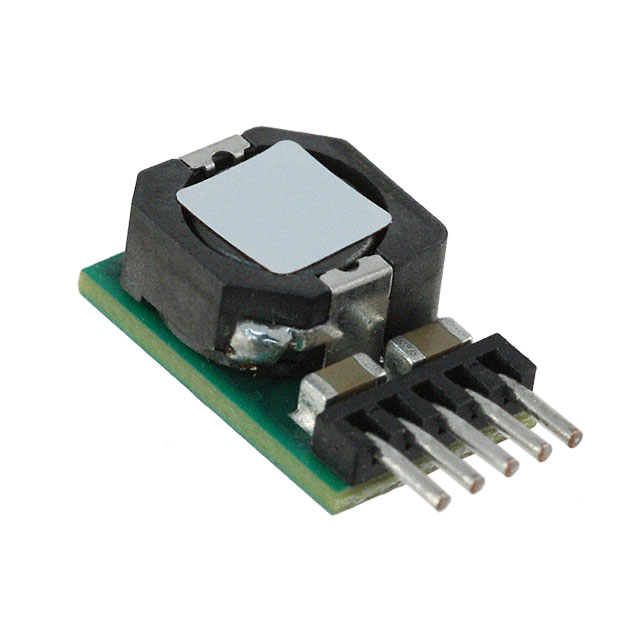

OKR-T/10-W12-C

LTB

Murata Power Solutions Inc.

DC DC CONVERTER 0.591-6V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OKR-T/10-W12-C

LTB

Murata Power Solutions Inc.

DC DC CONVERTER 0.591-6V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OKR-T/10-W12-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	10 A
Efficiency	92 %
Features	OTP, UVLO, SCP, Remote On/Off, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-SIP Module
Power (Watts)	50 W
Size / Dimension [x]	0.41 "
Size / Dimension [x]	10.4 mm
Size / Dimension [y]	7.6 mm
Size / Dimension [y]	0.3 "
Size / Dimension [z]	16.5 mm
Size / Dimension [z]	0.65 in
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	6 V
Voltage - Output 1 [Min]	0.591 V

OKR-T Series

Part	Applications	Power (Watts)	Number of Outputs	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. OKR-T/3-W12-C	ITE (Commercial)	15 W	1	Non-Isolated PoL Module	16.5 mm	0.65 in	7.6 mm	0.3 "	0.41 "	10.4 mm	OCP OTP Remote On/Off SCP UVLO	4.5 V	5-SIP Module	Through Hole	85 °C	-40 °C	Active High Enable	3 A	6 V	0.59 V	14 V	93 %
Murata Power Solutions Inc. OKR-T/20-W12-C	ITE (Commercial)		1	Non-Isolated PoL Module		0.61 "		0.44 in	1.45 "	36.8 mm	OCP OTP Remote On/Off SCP UVLO	6 V	10-SIP Module 10 Leads	Through Hole	85 °C	-40 °C	Active High Enable	20 A	5 V	0.591 V	13.8 V	94 %	11.2 mm	15.5 mm
Murata Power Solutions Inc. OKR-T/30-W12-C	ITE (Commercial)		1	Non-Isolated PoL Module	18.1 mm	0.71 in	15.5 mm	0.61 in	1.2 "	30.5 mm	OCP OTP OVP Remote On/Off SCP UVLO	5.5 V	14-SIP Module 13 Leads	Through Hole	70 °C	-40 °C	Active High Enable	30 A	6 V	0.591 V	13.8 V	95 %
Murata Power Solutions Inc. OKR-T/1.5-W12-C	ITE (Commercial)	8 W	1	Non-Isolated PoL Module	10.2 mm	0.4 "	6.1 mm	0.24 "	0.41 "	10.4 mm	OCP OTP Remote On/Off SCP UVLO	4.5 V	5-SIP Module	Through Hole	85 °C	-40 °C	Active High Enable	1.5 A	6 V	0.591 V	14 V	95.5 %
Murata Power Solutions Inc. OKR-T/10-W12-C	ITE (Commercial)	50 W	1	Non-Isolated PoL Module	16.5 mm	0.65 in	7.6 mm	0.3 "	0.41 "	10.4 mm	OCP OTP Remote On/Off SCP UVLO	4.5 V	5-SIP Module	Through Hole	85 °C	-40 °C	Active High Enable	10 A	6 V	0.591 V	14 V	92 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.55
		5	$ 11.46
		10	$ 11.37
		25	$ 11.20
		50	$ 10.86
		100	$ 10.14
		250	$ 9.75

Description

General part information

OKR-T Series

Non-Isolated PoL Module DC DC Converter 1 Output 0.591 ~ 6V 10A 4.5V - 14V Input
