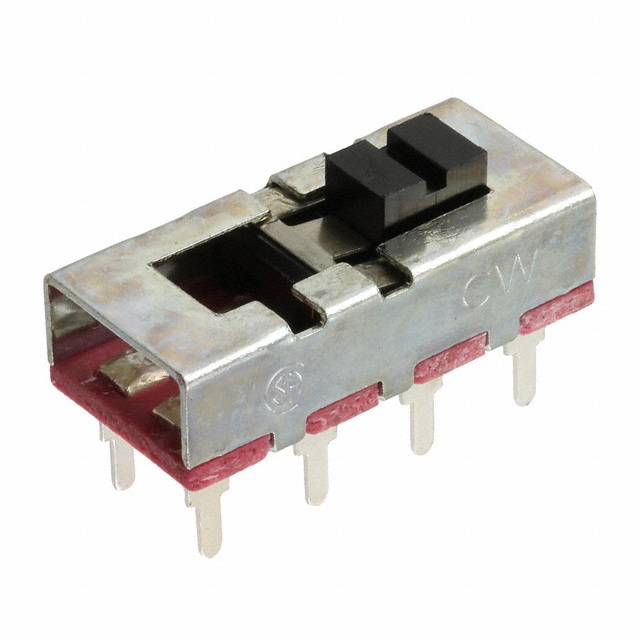

G-1328S-0031

Active

CW Industries

SWITCH SLIDE DP3T 13A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH SLIDE DP3T 13A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Termination Style	Switch Travel [custom]	Mechanical Life	Contact Finish	Actuator Length [x]	Current Rating (Amps)	Contact Timing	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Contact Material	Switch Function	Circuit	Voltage Rating - DC	Actuator Material	Actuator Length [z]
CW Industries G-1328S-0020	6000 Cycles	Solder Lug	6.25 mm	10000 Steps	Silver	8.74 mm	13 A 500 mA	Not Specified	Standard	104 °C	-10 °C	125 V	Copper	On-On-On	DP3T	125 VDC	Nylon 6/6 Polyamide (PA66)
CW Industries G-1328S-0021	6000 Cycles	Solder Lug	6.25 mm	10000 Steps	Silver		13 A 500 mA	Not Specified	Standard	104 °C	-10 °C	125 V	Copper	On-On-On	DP3T	125 VDC	Nylon 6/6 Polyamide (PA66)	15.88 mm
CW Industries G-1328S-0031	6000 Cycles	PC Pin	6.25 mm	10000 Steps	Silver	3.18 mm	13 A 500 mA	Not Specified	Screwdriver Slot	104 °C	-10 °C	125 V	Copper	On-On-On	DP3T	125 VDC	Nylon 6/6 Polyamide (PA66)
CW Industries G-1328S-0024	6000 Cycles	Solder Lug	6.25 mm	10000 Steps	Silver	8.74 mm	13 A 500 mA	Not Specified	Standard	104 °C	-10 °C	125 V	Copper	On-On-On	DP3T	125 VDC	Nylon 6/6 Polyamide (PA66)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.84

General part information

Slide Switch DP3T Panel Mount
