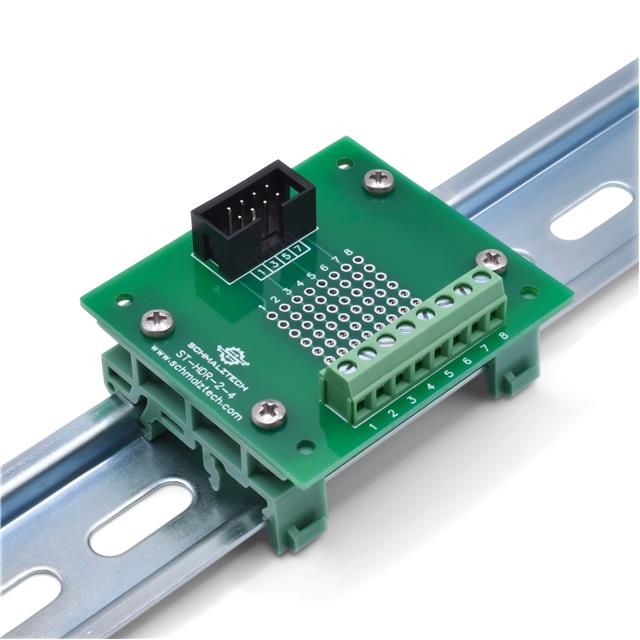

ST-HDR-2-4-DIN
ActiveSchmalzTech, LLC
2X4 HEADER BREAKOUT BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST-HDR-2-4-DIN
ActiveSchmalzTech, LLC
2X4 HEADER BREAKOUT BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-HDR-2-4-DIN |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Material | FR4 Epoxy Glass |
| Number of Positions | 8 |
| Package Accepted | Header |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Proto Board Type | Connector to Terminal Block |
| Size / Dimension [x] | 2.2 in |
| Size / Dimension [x] | 55.88 mm |
| Size / Dimension [y] | 2 " |
| Size / Dimension [y] | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.99 | |
| 20 | $ 14.49 | |||
| 50 | $ 13.99 | |||
Description
General part information
ST-HDR Series
2X4 HEADER BREAKOUT BOARD
Documents
Technical documentation and resources
