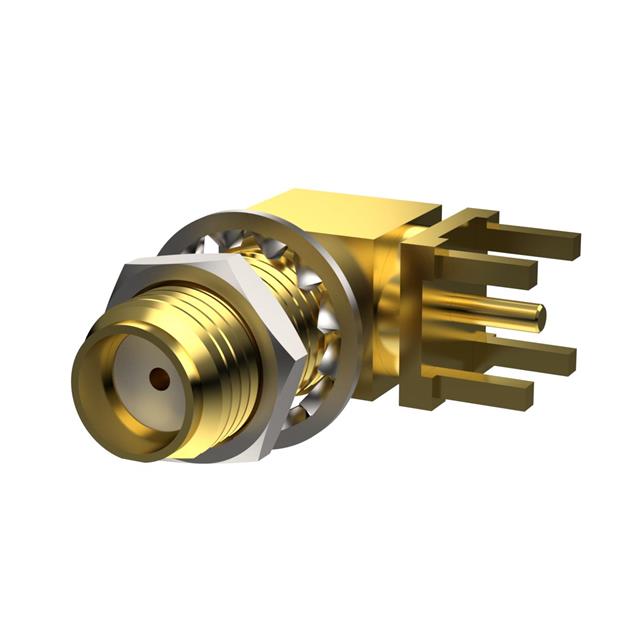

PCB.114SMAFRA.YC

Active

TAOGLAS

RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 50 OHM

Search across all available documentation for this part.

Active

TAOGLAS

RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	PCB.114SMAFRA.YC

Body Finish	Gold
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Housing Color	Gold
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Shield Termination	Solder

Part	Number of Ports	Connector Type	Center Contact Plating	Connector Style	Body Finish	Contact Termination	Shield Termination	Mounting Feature	Housing Color	Mounting Type
TAOGLAS PCB.114SMAFRA.YC	1	Female Socket Jack	Gold	SMA	Gold	Solder	Solder	Bulkhead - Front Side Nut	Gold	Panel Mount Right Angle Through Hole
TAOGLAS PCB.114SMAFRPRAJ.A	1	Female Socket Jack	Gold	RP-SMA	Gold	Solder	Solder	Bulkhead - Front Side Nut	Gold	Panel Mount Right Angle Through Hole
TAOGLAS PCB.114SMAFRA.NI	1	Female Socket Jack	Gold	SMA	Nickel	Solder	Solder	Bulkhead - Front Side Nut	Silver	Panel Mount Right Angle Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket Panel Mount, Through Hole, Right Angle Solder
