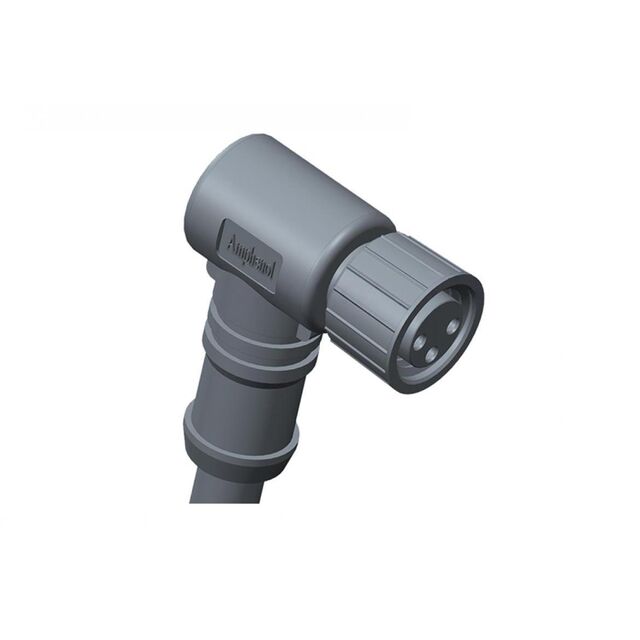

8-04BFFM-SR7B02

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, METAL, 3A, 04 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8-04BFFM-SR7B02

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, METAL, 3A, 04 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8-04BFFM-SR7B02

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Unshielded
Usage	Industrial Environments

8-04BFFM Series

Part	Shielding	1st Connector Number of Positions Loaded	Assembly Configuration	Usage	2nd Connector Type	1st Connector Shell Size - Insert	1st Connector Gender	Cable Material	Ingress Protection	Cable Type	1st Connector Type	Color	Length [x]	Length [x]	1st Connector Number of Positions	1st Connector Mounting Type
Amphenol LTW 8-04BFFM-SR7A05	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle Right Angle	Black	1.64 ft	500 mm	4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SR7B05	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle Right Angle	Black			4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SR7B02	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle Right Angle	Black	6.56 ft	2 m	4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SL7A02	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle	Black	6.56 ft	2 m	4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SL7B10	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle	Black			4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SR7A01	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle Right Angle	Black	3.28 ft	1 m	4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SR7B10	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle Right Angle	Black			4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SR7A02	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle Right Angle	Black	6.56 ft	2 m	4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SL7A01	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle	Black	3.28 ft	1 m	4	Free Hanging (In-Line)
Amphenol LTW 8-04BFFM-SL7A10	Unshielded	All	Standard	Industrial Environments	Wire Leads	M8	Female Sockets	Polyvinyl Chloride (PVC)	IP67 - Dust Tight Waterproof	Round	Receptacle	Black			4	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.68
		10	$ 11.28
		25	$ 10.20
		50	$ 9.47
		100	$ 8.81
		250	$ 8.02
		500	$ 7.50
		1000	$ 7.02
Newark	Each	10	$ 10.99
		25	$ 9.99
		50	$ 9.37
		100	$ 9.00
		250	$ 8.22

Description

General part information

8-04BFFM Series

Circular Cable Assembly Unshielded 6.56' (2.00m)
