342-028-540-208
ActiveEDAC Inc.

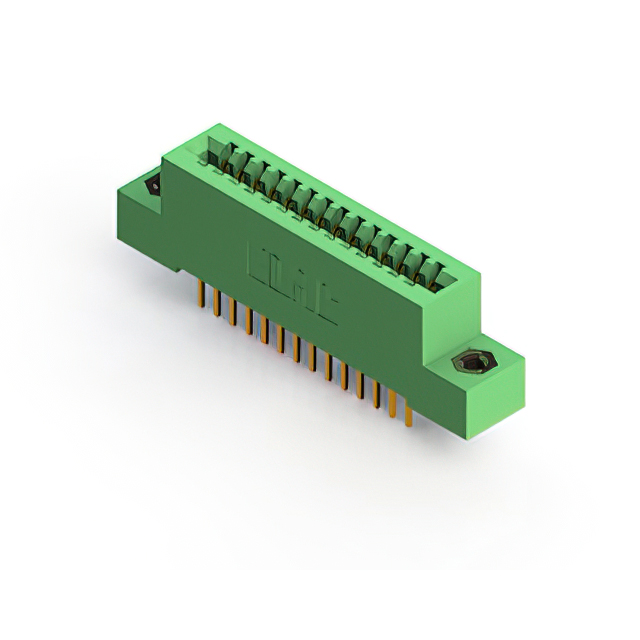

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 28 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-028-540-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 28 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-028-540-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
342-028 Series
...
| Part | Material - Insulation | Termination Rows | Contact Material | Mounting Type | Read Out | Number of Positions/Bay/Row [custom] | Contact Finish | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions | Gender | Color | Contact Type | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Through Hole | Dual | 14 | Gold | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2 | 28 | Female | Green | Cantilever | Wire Wrap | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | |
EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Through Hole | Single | 28 | Gold | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1 | 28 | Female | Green | Cantilever | Solder | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | |
EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Through Hole | Dual | 14 | Gold | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2 | 28 | Female | Green | Cantilever | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | |||
EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Board Edge Straddle Mount | Dual | 14 | Gold | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2 | 28 | Female | Green | Cantilever | Solder | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Card Extender | ||
EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Through Hole | Dual | 14 | Gold | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2 | 28 | Female | Green | Cantilever | Solder | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | |
EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Through Hole | Dual | 14 | Gold | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2 | 28 | Female | Green | Cantilever | Solder Eyelet(s) | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | |
EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Board Edge Straddle Mount | Dual | 14 | Gold | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2 | 28 | Female | Green | Cantilever | Solder | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Card Extender |
EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Through Hole | Single | 28 | Gold | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1 | 28 | Female | Green | Cantilever | Wire Wrap | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | |
EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Through Hole | Dual | 14 | Gold | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2 | 28 | Female | Green | Cantilever | Solder | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | |
EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Through Hole | Dual | 14 | Gold | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2 | 28 | Female | Green | Cantilever | Wire Wrap | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-028 Series
28 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
