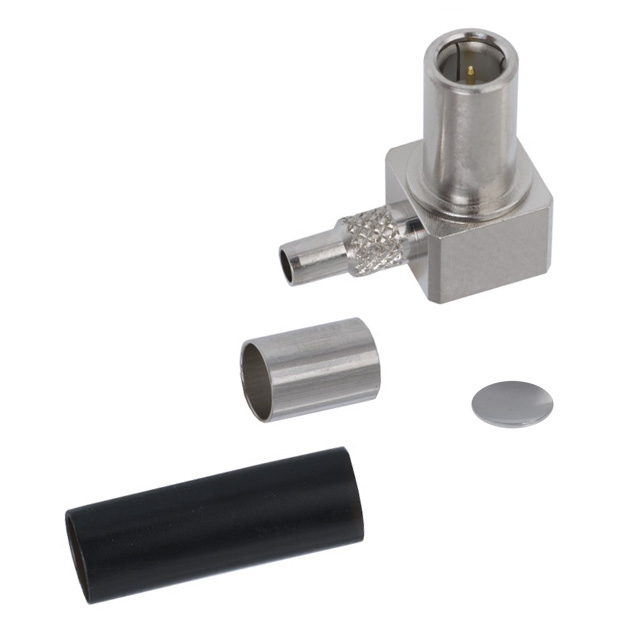

MS-147-C(LP)-4

Active

Hirose Electric USA, Inc.

INTERFACE RF CONNECTORS WITH SWITCH, 3.9MM HEIGHT, DC TO 6GHZ

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

INTERFACE RF CONNECTORS WITH SWITCH, 3.9MM HEIGHT, DC TO 6GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	MS-147-C(LP)-4

Body Finish	Nickel
Body Material	Phosphor Bronze
Cable Group	1.5D-HQEW
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Coaxial Switch
Connector Style	4.8 mm
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Features	Internal Switch
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Mating Cycles	12000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Crimp

Part	Adapter Series	Mounting Type	Convert From (Adapter End)	Convert From (Adapter End)	Conversion Type	Dielectric Material	Mating Cycles	Convert To (Adapter End)	Center Contact Material	Center Contact Plating	Impedance	Center Gender	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Style	Fastening Type	Body Material	Body Finish	Shield Termination	Contact Termination	Cable Group	Connector Type	Housing Color	Features	Includes	Connector Style	Connector Style	Number of Ports
Hirose Electric USA, Inc. MS-147-HRMJ-3	SMA to Coaxial Switch	Free Hanging (In-Line)	4.8 mm	Coaxial Switch - Plug Dia Jack Female Socket	Between Series	Polytetrafluoroethylene (PTFE)	12000	Female Socket SMA Jack	Beryllium Copper	Gold	50 Ohms	Female to Female	Jack to Jack	-10 °C	65 °C	6000 MHz	Straight	Push-Pull Threaded	Phosphor Bronze Stainless Steel	Nickel; Passivated
Hirose Electric USA, Inc. MS-147-C(LP)-4		Free Hanging (In-Line) Right Angle				Polytetrafluoroethylene (PTFE)	12000		Beryllium Copper	Gold	50 Ohms			-30 ░C	85 °C	3 GHz		Push-Pull	Phosphor Bronze	Nickel	Crimp	Solder	1.5D-HQEW	Male Pin Plug	Silver	Internal Switch	1 Heat Shrink 2 pcs - 1 Connector	Coaxial Switch	4.8 mm	1
Hirose Electric USA, Inc. MS-147-C(LP)-1		Free Hanging (In-Line) Right Angle				Polytetrafluoroethylene (PTFE)	12000		Beryllium Copper	Gold	50 Ohms			-30 ░C	85 °C	6000 MHz		Snap-On	Phosphor Bronze	Nickel	Crimp	Solder	1.5D-HQEW	Male Pin Plug	Silver	Internal Switch	1 Heat Shrink 2 pcs - 1 Connector	Coaxial Switch	4.8 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 32.40
Newark	Each	1	$ 48.80
		50	$ 43.20

General part information

Coaxial Switch - 4.8mm Plug Dia Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources
