HIF3-2226SC

Active

Hirose Electric USA, Inc.

RIBBON CABLE CONNECTORS COMPLIANT WITH MIL-C-83503 STANDARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

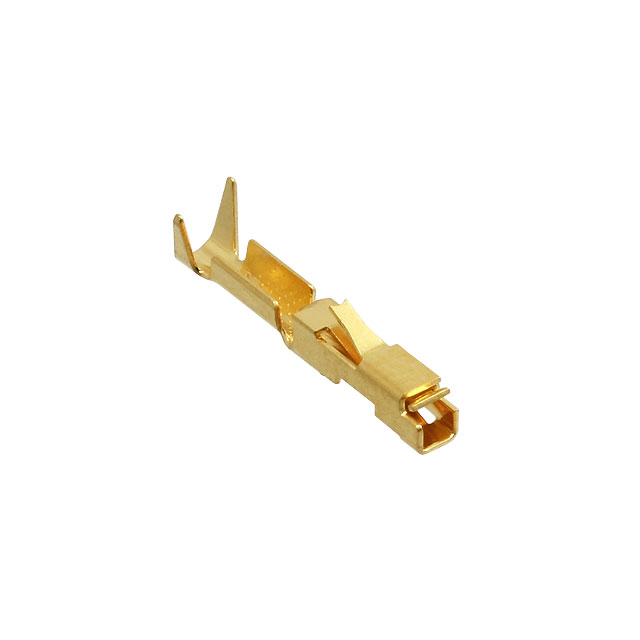

HIF3-2226SC

Active

Hirose Electric USA, Inc.

RIBBON CABLE CONNECTORS COMPLIANT WITH MIL-C-83503 STANDARD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3-2226SC

Contact Finish	Gold
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

HIF3 Series

Crimpers / Crimping Tools HIF3 SER AUTO CRMP APPLICATOR TOOL

Part	For Use With/Related Products	Accessory Type	Number of Positions	Contact Finish	Pin or Socket	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material	Termination	Connector Type	Voltage Rating	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Style	Shrouding	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Rows	Contact Shape	Fastening Type	Contact Type
Hirose Electric USA, Inc. HIF3-GPD40	HIF3 Series	Guide Plate	40
Hirose Electric USA, Inc. HIF3-2428SCF				Gold	Socket	Crimp	24 AWG	28 AWG
Hirose Electric USA, Inc. HIF3-GPD50	HIF3 Series	Guide Plate	50
Hirose Electric USA, Inc. HIF3-2226SCFC				Gold	Socket	Crimp	22 AWG	26 AWG
Hirose Electric USA, Inc. HIF3-2226SC				Gold	Socket	Crimp	22 AWG	26 AWG
Hirose Electric USA, Inc. HIF3-2428SC				Gold	Socket	Crimp	24 AWG	28 AWG	8 çin	0.203 çm
Hirose Electric USA, Inc. HIF3-40P-2.54DS			40								Through Hole Right Angle	0.1 in	2.54 mm	Brass	Solder	Header	200 V	0.118 in	3 mm	85 °C	-55 °C	UL94 V-0	Board to Cable/Wire	Shrouded - 4 Wall	Mounting Flange	2.54 mm	0.1 in	All	Polybutylene Terephthalate (PBT)	6 mm	0.236 in	Black	2	Square	Latch Lock/Eject Hooks	Male Pin
Hirose Electric USA, Inc. HIF3-26CV(72)	HIF3 Series	Backshell	26
Hirose Electric USA, Inc. HIF3-6P-2.54DS			6								Through Hole Right Angle	0.1 in	2.54 mm	Brass	Solder	Header	200 V	0.118 in	3 mm	85 °C	-55 °C	UL94 V-0	Board to Cable/Wire	Shrouded - 4 Wall	Mounting Flange	2.54 mm	0.1 in	All	Polybutylene Terephthalate (PBT)	6 mm	0.236 in	Black	2	Square	Latch Lock/Eject Hooks	Male Pin
Hirose Electric USA, Inc. HIF3-10CL	HIF3 Series	Pull Tab	10
