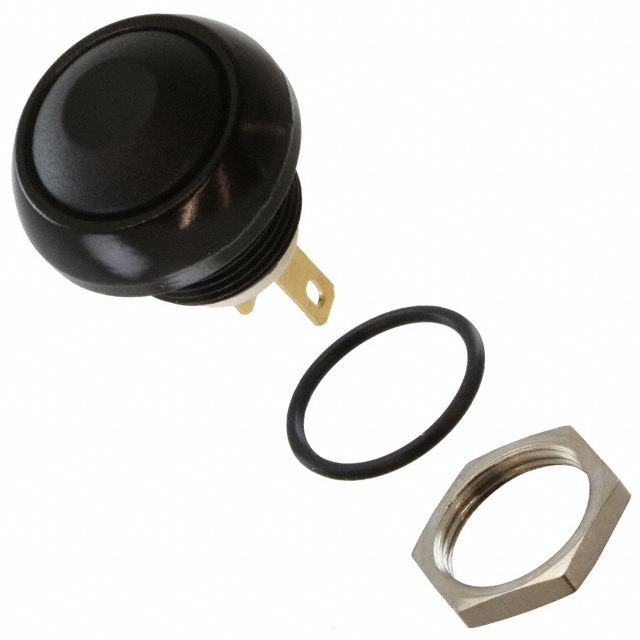

ICP3Z1AD2100

Active

APEM

SWITCH PUSH SPST-NO 5A 48V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPST-NO 5A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	ICP3Z1AD2100

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Electrical Life	500000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Standard
Voltage Rating - AC	48 V
Voltage Rating - DC	28 V

Part	Voltage Rating - DC	Actuator Marking	Switch Function	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Circuit	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mechanical Life	Mounting Type	Features	Actuator Type	Color - Actuator/Cap	Type
APEM ICP3Z1AD2100	28 V	No Marking	Off-Mom	13.6 mm	Quick Connect - 0.110" (2.8mm)	48 V	SPST-NO	500000 Cycles	85 °C	-40 °C	IP67 - Dust Tight Waterproof	1000000 Cycles	Panel Mount Front	Epoxy Sealed Terminals	Button Round	Black	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 25.17

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
