MU10BCX

Active

3M (TC)

BUTT SPLICE, SCOTCHLOK SERIES, 12 AWG, 10 AWG, UNINSULATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN

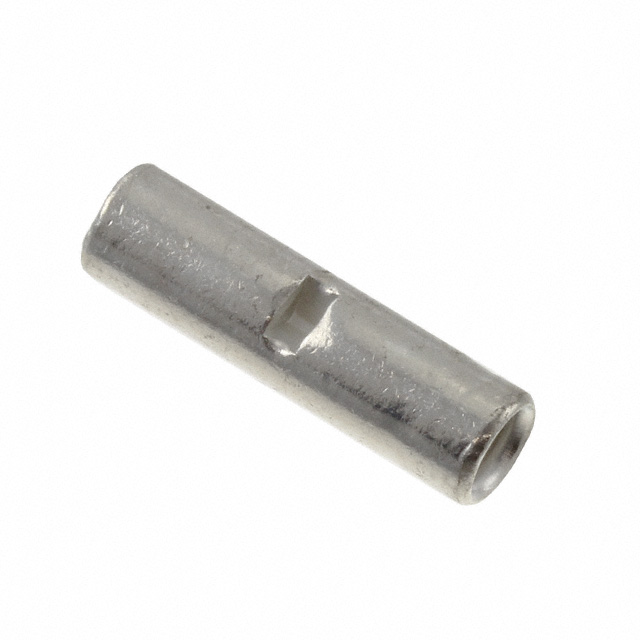

MU10BCX

Active

3M (TC)

BUTT SPLICE, SCOTCHLOK SERIES, 12 AWG, 10 AWG, UNINSULATED

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MU10BCX

Insulation	Non-Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

MU10 Series

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Insulation	Stud/Tab Size	Length - Termination	Length - Termination [x]	Terminal Type	Termination	Mounting Type	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Number of Wire Entries	Color	Thickness	Thickness
3M (TC) MU10-8FFBK	18.54 mm	0.73 in	Tin	8.13 mm	0.32 in	Butted Seam	12 AWG	10 AWG	Copper ETP	Non-Insulated	8 Stud	6.35 mm	0.25 "	Flanged	Crimp	Free Hanging (In-Line)	0.29 in	7.37 mm
3M (TC) MU10-10FK	18.54 mm	0.73 in	Tin			Butted Seam	12 AWG	10 AWG	Copper ETP	Non-Insulated		6.35 mm	0.25 "	Standard	Crimp	Free Hanging (In-Line)	0.29 in	7.37 mm	9.65 mm	0.38 "	10 Stud
3M (TC) MU10BCX							12 AWG	10 AWG		Non-Insulated				Butt Splice Individual Openings Inline	Crimp							2
3M (TC) MU10-8FBK	18.54 mm	0.73 in	Tin	8.13 mm	0.32 in	Butted Seam	12 AWG	10 AWG	Copper	Non-Insulated	8 Stud	6.35 mm	0.25 "	Standard	Crimp	Free Hanging (In-Line)	0.29 in	7.37 mm
3M (TC) MU10BCHTX-BOTTLE							12 AWG	10 AWG		Fully Insulated				Butt Splice Individual Openings Inline	Crimp							2	Yellow
3M (TC) MU10-4R/SK	17.27 mm	0.68 in	Tin	7.11 mm	0.28 in		12 AWG	10 AWG	Copper ETP	Non-Insulated				Circular	Crimp	Free Hanging (In-Line)					4 Stud			0.04 in	1.02 mm
3M (TC) MU10-10FHTK	18.54 mm	0.73 in	Nickel			Butted Seam	12 AWG	10 AWG	Steel	Non-Insulated		6.35 mm	0.25 "	Standard	Crimp	Free Hanging (In-Line)	0.28 in	7.11 mm	9.65 mm	0.38 "	10 Stud
3M (TC) MU10-10FBK	18.54 mm	0.73 in	Tin	8.13 mm	0.32 in	Butted Seam	12 AWG	10 AWG	Copper	Non-Insulated		6.35 mm	0.25 "	Standard	Crimp	Free Hanging (In-Line)	0.29 in	7.37 mm			10 Stud
3M (TC) MU10-6RX-BOTTLE	18.54 mm	0.73 in	Tin				12 AWG	10 AWG	Copper ETP	Non-Insulated				Circular	Crimp	Free Hanging (In-Line)			9.65 mm	0.38 "	6 Stud			0.04 in	1.02 mm
3M (TC) MU10-10FLX-BOTTLE	18.54 mm	0.73 in	Tin				12 AWG	10 AWG	Copper ETP	Non-Insulated		6.35 mm	0.25 "	Snap Spring	Crimp	Free Hanging (In-Line)	0.28 in	7.11 mm	9.14 mm	0.36 in	10 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.77
Newark	Pack of 50	1	$ 63.23
		10	$ 56.87
		25	$ 54.76
		50	$ 51.43
		100	$ 49.92
		250	$ 46.89
		500	$ 45.38

Description

General part information

MU10 Series

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 10-12 AWG
