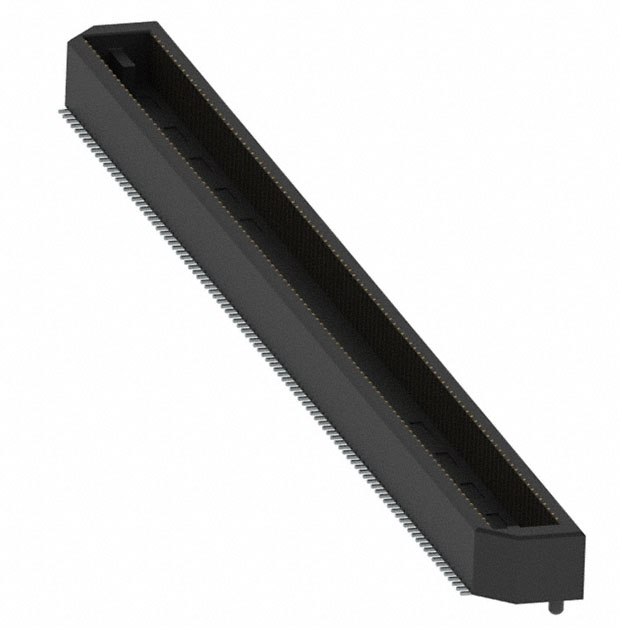

BTE-100-01-L-D-A - BTE-100-01-x-D-A

BTE-100-01-L-D-A

Active
Samtec Inc.

CONN HDR 200POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTE DatasheetBTE Series Other Related Documents 01+1
BTE-100-01-L-D-A - BTE-100-01-x-D-A

BTE-100-01-L-D-A

Active
Samtec Inc.

CONN HDR 200POS SMD GOLD

Deep-Dive with AI

DocumentsBTE DatasheetBTE Series Other Related Documents 01+1

Technical Specifications

Parameters and characteristics for this part

SpecificationBTE-100-01-L-D-A
Connector TypeHeader, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesBoard Guide
Height Above Board4.06 mm
Height Above Board0.16 in
Mated Stacking Heights5.03 mm
Mounting TypeSurface Mount
Number of Rows2
Pitch [x]0.8 mm
Pitch [x]0.031 in

BTE-100 Series

PartContact Finish ThicknessContact Finish ThicknessConnector TypeNumber of RowsFeaturesMounting TypeContact FinishPitch [x]Pitch [x]Mated Stacking Heights [z]Height Above BoardHeight Above BoardMated Stacking HeightsHeight Above Board [z]Height Above Board [z]
Samtec Inc.
BTE-100-02-F-D-A
3 Áin
0.076 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
8.03 mm
7.06 mm
0.278 "
Samtec Inc.
BTE-100-03-F-D-A-K
3 Áin
0.076 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
11.03 mm
0.396 in
10.06 mm
Samtec Inc.
BTE-100-01-H-D-A
30 Áin
0.76 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
4.06 mm
0.16 in
5.03 mm
Samtec Inc.
BTE-100-05-L-D-A
10 Áin
0.25 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
19.1 mm
0.719 in
18.26 mm
Samtec Inc.
BTE-100-01-F-D-EM2
3 Áin
0.076 Ám
Header
Outer Shroud Contacts
2
Board Edge
Straddle Mount
Gold
0.8 mm
0.031 in
Samtec Inc.
BTE-100-01-F-D-A
3 Áin
0.076 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
4.06 mm
0.16 in
5.03 mm
Samtec Inc.
BTE-100-04-L-D-A
10 Áin
0.25 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
15.27 mm
0.601 in
16.1 mm
Samtec Inc.
BTE-100-05-F-D-A
3 Áin
0.076 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
19.1 mm
0.719 in
18.26 mm
Samtec Inc.
BTE-100-01-L-D-A
10 Áin
0.25 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
4.06 mm
0.16 in
5.03 mm
Samtec Inc.
BTE-100-07-L-D-A
10 Áin
0.25 Ám
Header
Outer Shroud Contacts
2
Board Guide
Surface Mount
Gold
0.8 mm
0.031 in
24.23 mm
0.954 in
25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 18.71
10$ 14.40
100$ 11.26
500$ 9.60
1000$ 9.00

Description

General part information

BTE-100 Series

200 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
