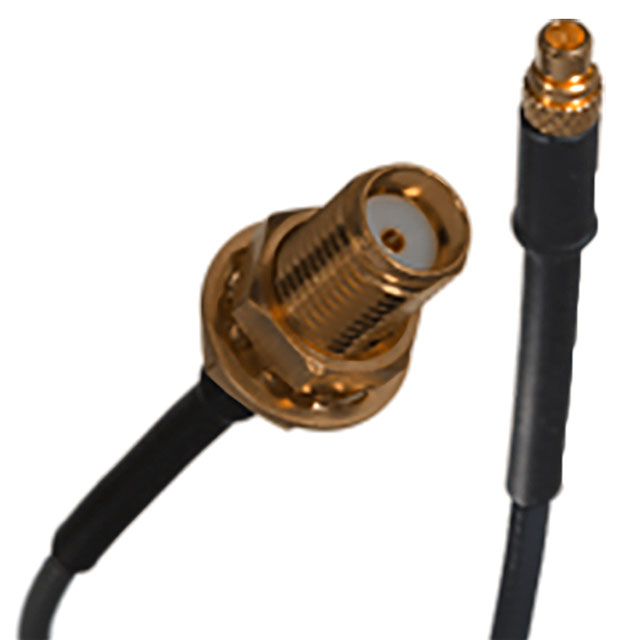

415-0203-MM500

Active

Cinch Connectivity Solutions Johnson

COAX CBL SMA TO MMCX 19.6"

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

COAX CBL SMA TO MMCX 19.6"

Technical Specifications

Parameters and characteristics for this part

Specification	415-0203-MM500

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	SMA to MMCX

Part	Connector Impedance	1st Connector	Length	Length	1st Contact Gender	Features	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	Cable Impedance	Cable Type	1st Connector Mounting Feature	Overall Impedance	Color	2nd Connector	Style
Cinch Connectivity Solutions Johnson 415-0203-MM500	50 Ohms	SMA Jack	50 cm	19.69 "	Female	Shielded	Free Hanging (In-Line)	Male	Panel Mount	50 Ohms	RG-174	Bulkhead - Front Side Nut	50 Ohms	Black	MMCX Plug	SMA to MMCX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to MMCX RG-174 19.69" (500.00mm)

Technical documentation and resources

No documents available
