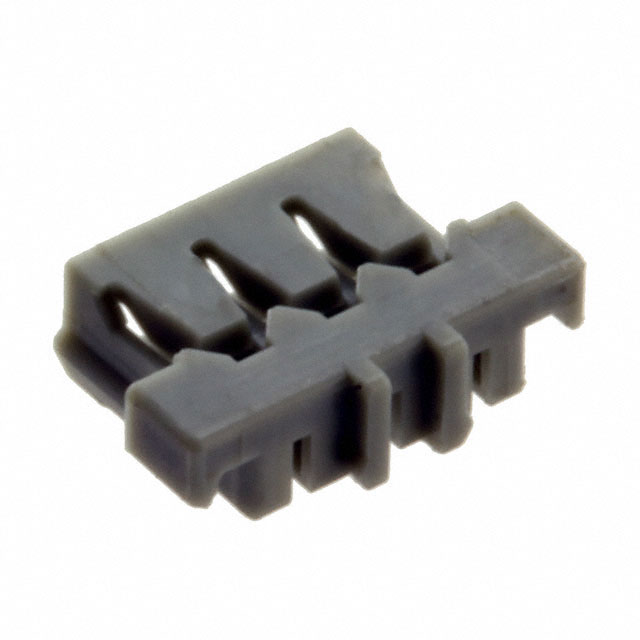

ADHR-03V-H

Active

JST Sales America Inc.

CONN RCPT HSG 3POS 1.30MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 3POS 1.30MM

Technical Specifications

Parameters and characteristics for this part

Specification	ADHR-03V-H

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Blade Socket
Fastening Type	Friction Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	1.3 mm
Pitch [x]	0.051 in

Part	Note	Pitch [x]	Pitch [x]	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Fastening Type	Contact Type	Connector Type	Mounting Type	Color
JST Sales America Inc. ADHR-03V-S	Contacts Not Included	1.3 mm	0.051 in	Crimp	-25 °C	85 °C	1	Polybutylene Terephthalate (PBT)	Friction Lock	Female Blade Socket	Receptacle	Free Hanging (In-Line)	Natural
JST Sales America Inc. ADHR-03V-H	Contacts Not Included	1.3 mm	0.051 in	Crimp	-25 °C	85 °C	1	Polybutylene Terephthalate (PBT)	Friction Lock	Female Blade Socket	Receptacle	Free Hanging (In-Line)	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Receptacle Gray 0.051" (1.30mm)
