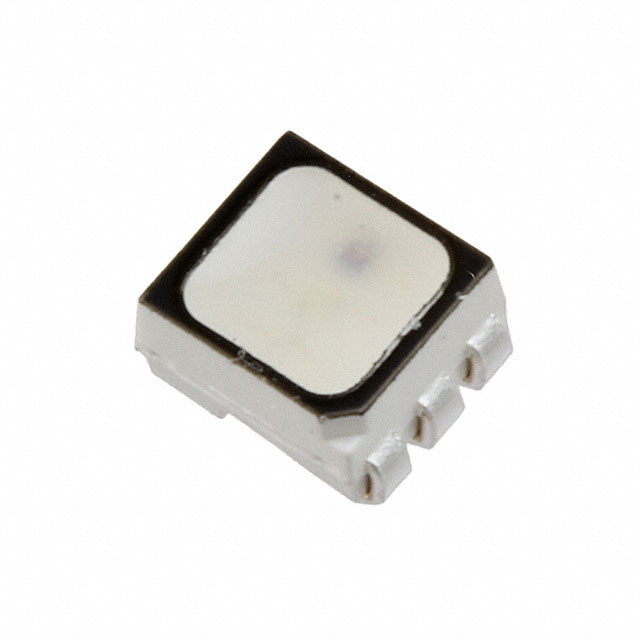

ASMT-YTB7-0AA02 - ASMT-YTB7-0AA02

ASMT-YTB7-0AA02

Active
Broadcom Limited

LED RGB DIFFUSED 6PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
ASMT-YTB7-0AA02 - ASMT-YTB7-0AA02

ASMT-YTB7-0AA02

Active
Broadcom Limited

LED RGB DIFFUSED 6PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationASMT-YTB7-0AA02
ColorRed, Green, Blue
ConfigurationIndependent
Current - Test [custom]20 mA
Current - Test [custom]20 mA
Current - Test [custom]20 mA
Height (Max) [Max] [z]2 mm
Lens Size2.3 mm
Lens StyleSquare with Flat Top
Lens TransparencyDiffused
Millicandela Rating [custom]650 mcd
Millicandela Rating [custom]384 mcd
Millicandela Rating [custom]1900 mcd
Mounting TypeSurface Mount
Package / Case6-SMD, J-Lead
Size / Dimension [x]3 mm
Size / Dimension [y]2.8 mm
Supplier Device Package6-PLCC
Viewing Angle120 °
Voltage - Forward (Vf) (Typ) [custom]2.1 V
Voltage - Forward (Vf) (Typ) [custom]3.1 V
Voltage - Forward (Vf) (Typ) [custom]3.1 V
Wavelength - Dominant469 nm, 529 nm, 623 nm
Wavelength - Peak [custom]522 nm
Wavelength - Peak [custom]630 nm
Wavelength - Peak [custom]465 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.40
10$ 0.89
100$ 0.66
500$ 0.60
1000$ 0.50
Digi-Reel® 1$ 1.40
10$ 0.89
100$ 0.66
500$ 0.60
1000$ 0.50
Tape & Reel (TR) 2000$ 0.47
6000$ 0.46
10000$ 0.45

Description

General part information

ASMT-YTB7 Series

Red, Green, Blue (RGB) 623nm Red, 529nm Green, 469nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 3.1V Blue 6-SMD, J-Lead
