JB15KP-4FF

Active

NKK Switches

LOW PROFILE PROCESS SEALED TACTILE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JB15KP-4FF

Active

NKK Switches

LOW PROFILE PROCESS SEALED TACTILE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JB15KP-4FF

Actuator Height off PCB, Vertical [z]	11.2 mm
Actuator Material	Polyacetal
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles
Mounting Type	Through Hole
Operating Force	176 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

JB15KP Series

Part	Switch Travel	Actuator Type	Ingress Protection	Mounting Type	Operating Force	Contact Rating @ Voltage	Switch Function	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Illumination	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Material	Termination Style	Actuator Orientation	Mechanical Life
NKK Switches JB15KP-4HC	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-4GH	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-2H	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-1H	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-1E	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-5F	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-2A	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-2C	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-4BH	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles
NKK Switches JB15KP-4FF	0.25 mm	Square Button	IP67 - Dust Tight Waterproof	Through Hole	176 gf	0.05 A 24 VDC	Off-Mom	11.2 mm	10 mm	10 mm	Non-Illuminated	SPST-NO	70 °C	-25 °C	Process Sealed	Polyacetal	PC Pin	Top Actuated	5000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.17
		10	$ 2.99
		25	$ 2.71
		100	$ 2.35
		250	$ 2.13
		500	$ 1.98
		1000	$ 1.84
		2500	$ 1.67
		5000	$ 1.60
Newark	Each	1	$ 6.37
		10	$ 6.12
		25	$ 5.93
		50	$ 5.49
		100	$ 5.00
		250	$ 4.39
		500	$ 3.93
		1000	$ 3.70

Description

General part information

JB15KP Series

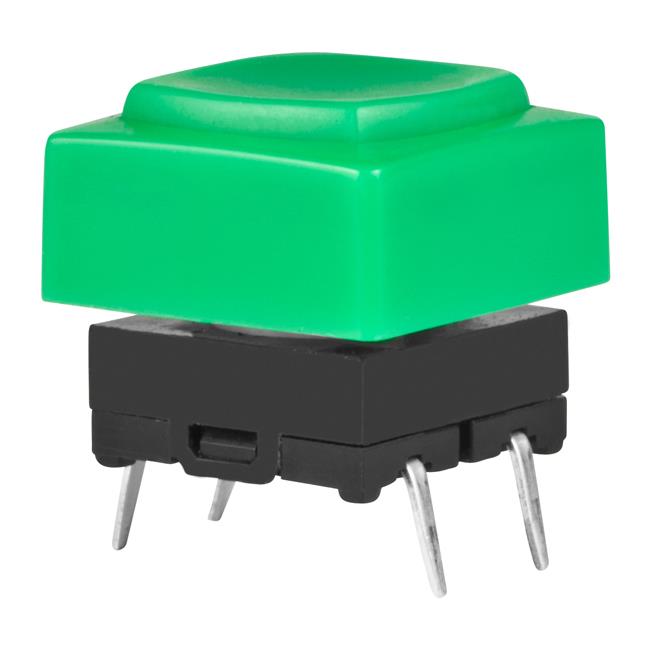

Tactile Switch SPST-NO Top Actuated Through Hole
