ASMK020X174S11
ActiveSiretta Ltd

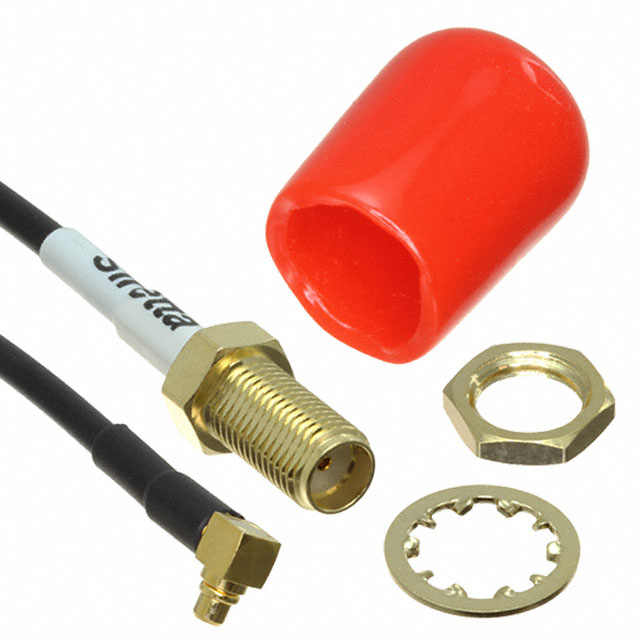

CBL ASSY SMA-MMCX JCK-PLG 7.874"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMK020X174S11
ActiveSiretta Ltd
CBL ASSY SMA-MMCX JCK-PLG 7.874"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMK020X174S11 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | MMCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 7.874 in |
| Length | 200 mm |
| Overall Impedance | 50 Ohms |
| Style | SMA to MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.35 | |
| 10 | $ 13.30 | |||
| 30 | $ 12.61 | |||
| 50 | $ 12.42 | |||
| 100 | $ 10.96 | |||
| 250 | $ 10.23 | |||
| 500 | $ 10.04 | |||
Description
General part information
ASMK020 Series
Cable Assembly Coaxial SMA to MMCX RG-174 7.874" (200.00mm)
