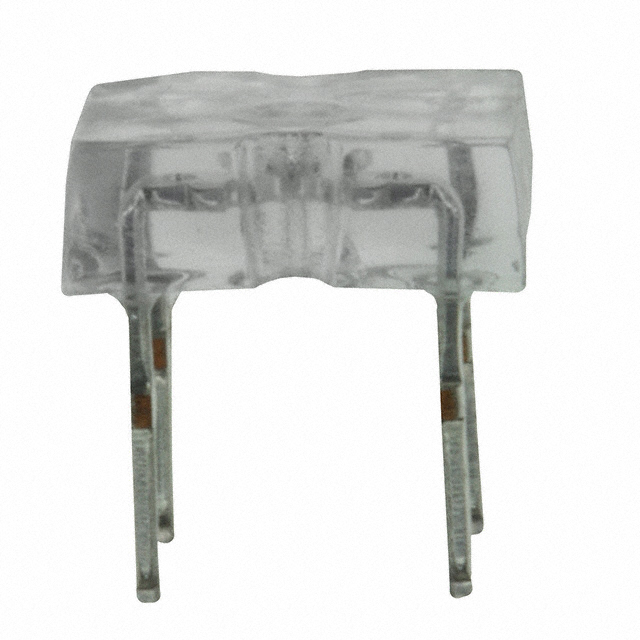

R50RB2-F-0160

Active

Bivar Inc.

LED, THROUGH HOLE, 7.6MM X 7.6MM BI-COLOR, RED/BLUE, (617NM/460NM), (800MCD/250MCD), WATER CLEAR LENS, 160 DEG VIEWING ANGLE / T

Search across all available documentation for this part.

Active

Bivar Inc.

LED, THROUGH HOLE, 7.6MM X 7.6MM BI-COLOR, RED/BLUE, (617NM/460NM), (800MCD/250MCD), WATER CLEAR LENS, 160 DEG VIEWING ANGLE / T

Technical Specifications

Parameters and characteristics for this part

Specification	R50RB2-F-0160

Color	Blue, Red
Configuration	Common Cathode
Current - Test	50 mA, 50 mA
Height (Max) [Max] [z]	4.4 mm
Lens Color	Colorless
Lens Size	7.6 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating	600 mcd, 150 mcd
Mounting Type	Through Hole
Package / Case	4-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Size / Dimension [x]	7.6 mm
Size / Dimension [y]	7.6 mm
Viewing Angle	160 °
Voltage - Forward (Vf) (Typ) [custom]	2.6 V
Voltage - Forward (Vf) (Typ) [custom]	3.8 V
Wavelength - Dominant	465 nm, 628 nm

Part	Mounting Type	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Height (Max) [Max]	Lens Transparency	Lens Size [diameter]	Viewing Angle	Lens Color	Package / Case	Package / Case	Package / Case	Wavelength - Dominant	Millicandela Rating	Configuration	Lens Style	Color	Lens Size	Height (Max) [Max] [z]
Bivar Inc. R50RB2-4-0045	Through Hole	50 mA 50 mA	7.6 mm	7.6 mm	2.6 V	3.8 V	7.8 mm	Clear	4.6 mm Dia	45 °	Colorless	4-DIP	0.2 in	0.2 in	465 nm 628 nm	400 mcd 4000 mcd	Common Cathode	Round with Domed Top	Blue Red
Bivar Inc. R50RB2-F-0160	Through Hole	50 mA 50 mA	7.6 mm	7.6 mm	2.6 V	3.8 V		Clear		160 °	Colorless	4-DIP	0.2 in	0.2 in	465 nm 628 nm	150 mcd 600 mcd	Common Cathode	Square with Flat Top	Blue Red	7.6 mm	4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue, Red 465nm Blue, 628nm Red LED Indication - Discrete 3.8V Blue, 2.6V Red 4-DIP (0.200", 5.08mm)
