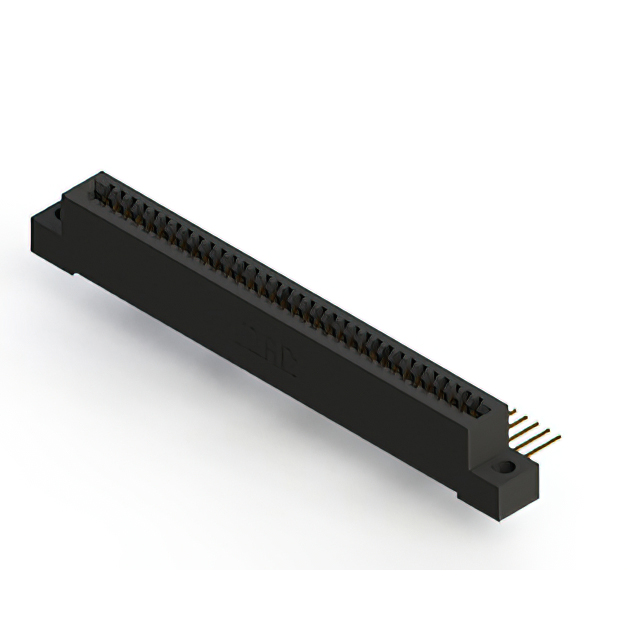

892-034-559-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 34POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-034-559-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 34POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-034-559-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
892-034 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Finish | Material - Insulation | Read Out | Card Type | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Number of Rows | Termination | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Color | Termination Rows | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 34 | Gold | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Female | 125 °C | -40 °C | Cantilever | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 1 | Copper Alloy | |
EDAC Inc. | 34 | Gold | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Female | 125 °C | -40 °C | Cantilever | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Wire Wrap | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 1 | Copper Alloy | |
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Female | 125 °C | -40 °C | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 2 | Wire Wrap | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 2 | Copper Alloy | ||||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Female | 125 °C | -40 °C | Cantilever | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 2 | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 2 | Copper Alloy | ||
EDAC Inc. | 34 | Gold | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Female | 125 °C | -40 °C | Cantilever | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 1 | Copper Alloy | |
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Female | 125 °C | -40 °C | Cantilever | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 2 | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 2 | Copper Alloy | ||
EDAC Inc. | 34 | Gold | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Female | 125 °C | -40 °C | Cantilever | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Wire Wrap | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 1 | Copper Alloy | ||||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Female | 125 °C | -40 °C | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 2 | Wire Wrap | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 2 | Copper Alloy | ||||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Female | 125 °C | -40 °C | Cantilever | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 2 | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 2 | Copper Alloy | Card Extender | |
EDAC Inc. | 34 | Gold | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Female | 125 °C | -40 °C | Cantilever | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Solder | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Black | 1 | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-034 Series
34 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
