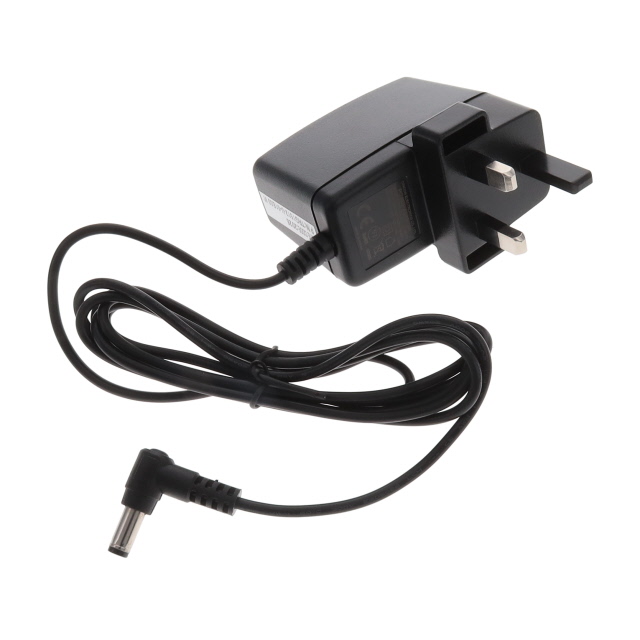

TRG1512-U-01E03 VI
ActiveCincon Electronics Co. LTD
AC/DC WALL MOUNT ADAPTER 12V 12W
Deep-Dive with AI
Search across all available documentation for this part.
TRG1512-U-01E03 VI
ActiveCincon Electronics Co. LTD
AC/DC WALL MOUNT ADAPTER 12V 12W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TRG1512-U-01E03 VI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, cULus, TUV, GS, FCC, CE |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class I) |
| Input Connector | BS 1363 |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Polarization | Positive Center |
| Power (Watts) | 12 W |
| Region Utilized | United Kingdom |
| Size / Dimension [x] | 72 mm |
| Size / Dimension [x] | 2.84 in |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [z] | 52 mm |
| Size / Dimension [z] | 2.05 in |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
TRG1512 Series
| Part | Input Connector | Cord Length | Cord Length | Approval Agency | Form | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | No Load Power Consumption [Max] | Applications | Input Type | Region Utilized | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Polarization | Current - Output (Max) [Max] | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cincon Electronics Co. LTD | NEMA 1-15P | 70.9 in | 1.8 m | CE cULus FCC GS PSE TUV | Wall Mount (Class II) | 12 W | -20 C | 60 °C | 75 mW | ITE (Commercial) | Fixed Blade | North America | 60950-1 | 90 VAC | 264 VAC | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | Positive Center | 1 A | 12 V |
Cincon Electronics Co. LTD | AS 3112 | 70.9 in | 1.8 m | CE cULus FCC GS PSE TUV | Wall Mount (Class II) | 12 W | -20 C | 60 °C | 75 mW | ITE (Commercial) | Fixed Blade | Australia | 60950-1 | 90 VAC | 264 VAC | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | Positive Center | 1 A | 12 V |
Cincon Electronics Co. LTD | AS 3112 | 70.9 in | 1.8 m | CE cULus FCC GS PSE TUV | Wall Mount (Class II) | 14 Watts | -20 C | 60 °C | 75 mW | ITE (Commercial) | Fixed Blade | Australia | 60950-1 | 90 VAC | 264 VAC | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | Positive Center | 1 A | 13.6 V |
Cincon Electronics Co. LTD | NEMA 1-15P | 70.9 in | 1.8 m | CE cULus FCC GS PSE TUV | Wall Mount (Class II) | 14 Watts | -20 C | 60 °C | 75 mW | ITE (Commercial) | Fixed Blade | North America | 60950-1 | 90 VAC | 264 VAC | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | Positive Center | 1 A | 13.6 V |
Cincon Electronics Co. LTD | BS 1363 | 70.9 in | 1.8 m | CE cULus FCC GS PSE TUV | Wall Mount (Class I) | 12 W | -20 C | 60 °C | 75 mW | ITE (Commercial) | Fixed Blade | United Kingdom | 60950-1 | 90 VAC | 264 VAC | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | Positive Center | 1 A | 12 V |
Cincon Electronics Co. LTD | BS 1363 | 70.9 in | 1.8 m | CE cULus FCC GS PSE TUV | Wall Mount (Class I) | 14 Watts | -20 C | 60 °C | 75 mW | ITE (Commercial) | Fixed Blade | United Kingdom | 60950-1 | 90 VAC | 264 VAC | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | Positive Center | 1 A | 13.6 V |
Cincon Electronics Co. LTD | KSC 8305 | 70.9 in | 1.8 m | CE cULus FCC GS PSE TUV | Wall Mount (Class II) | 14 Watts | -20 C | 60 °C | 75 mW | ITE (Commercial) | Fixed Blade | Europe | 60950-1 | 90 VAC | 264 VAC | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | Positive Center | 1 A | 13.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.00 | |
| 5 | $ 10.67 | |||
| 10 | $ 10.35 | |||
| 25 | $ 9.83 | |||
| 50 | $ 9.44 | |||
| 100 | $ 9.11 | |||
Description
General part information
TRG1512 Series
12V 12 W AC/DC External Wall Mount (Class I) Adapter Fixed Blade Input
