6600.4312

Active

SCHURTER Inc.

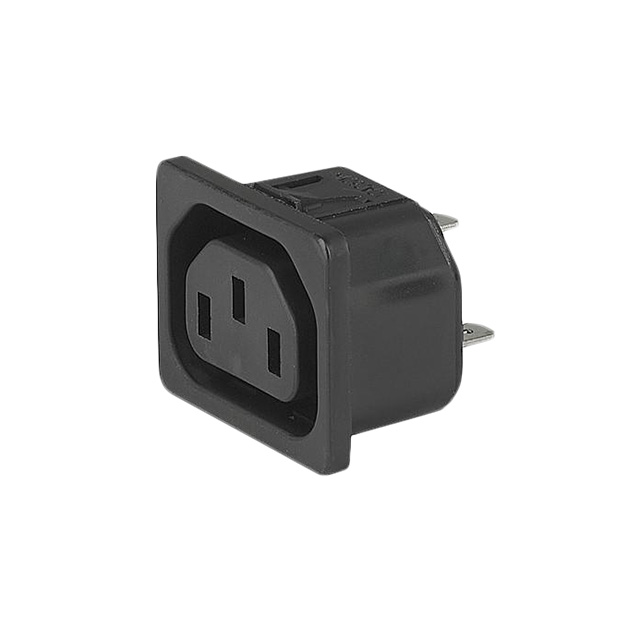

CONNECTOR: AC SUPPLY; SOCKET; FEMALE; 10A; 250VAC; C13 (F); 6600-4

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; FEMALE; 10A; 250VAC; C13 (F); 6600-4

Technical Specifications

Parameters and characteristics for this part

Specification	6600.4312

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Features	Light Pipe
Filter Type	Unfiltered - Commercial
Ingress Protection	IP30
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	32.5 mm
Panel Cutout Dimensions [y]	24.8 mm
Panel Thickness	1.2 mm
Panel Thickness	0.047 "
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Connector Style	Mounting Type	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Filter Type	Approval Agency	Features	Ingress Protection	Material Flammability Rating	Current Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness	Panel Thickness	Panel Thickness [x]	Panel Thickness [x]
SCHURTER Inc. 6600.4310	Receptacle Female Sockets	IEC 320-2-2/F	Panel Mount Snap-In	250 VAC	0.25 in	6.3 mm	Quick Connect	Unfiltered - Commercial	CCC cULus ENEC	Light Pipe	IP30	UL94 V-0	10 A	32.5 mm	24.8 mm	1 mm	0.039 in
SCHURTER Inc. 6600.4312	Receptacle Female Sockets	IEC 320-2-2/F	Panel Mount Snap-In	250 VAC	0.25 in	6.3 mm	Quick Connect	Unfiltered - Commercial	CCC cULus ENEC	Light Pipe	IP30	UL94 V-0	10 A	32.5 mm	24.8 mm	1.2 mm	0.047 "
SCHURTER Inc. 6600.4225	Receptacle Female Sockets	IEC 320-2-2/F	Panel Mount Snap-In	250 VAC		0.189 " 4.8 mm	Quick Connect	Unfiltered - Commercial	CCC cULus ENEC	Light Pipe	IP30	UL94 V-0	10 A	32.5 mm	24.8 mm			2.5 mm	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
