355-032-556-502
ActiveEDAC Inc.

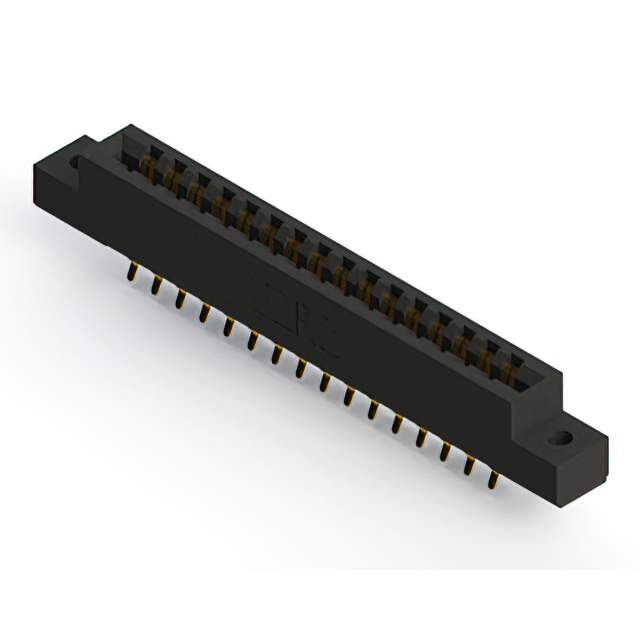

3.96MM CLAMP BOARD 32P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-032-556-502
ActiveEDAC Inc.
3.96MM CLAMP BOARD 32P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-032-556-502 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-032 Series
| Part | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Card Type | Read Out | Number of Positions/Bay/Row [custom] | Termination Rows | Gender | Contact Finish | Contact Type | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Pitch [x] | Pitch [x] | Contact Material | Termination | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder Eyelet(s) | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Floating Bobbin Flush Mount | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder | 10 Áin | 0.25 Ám | Panel Mount Through Hole | 0.116 in | 2.95 mm | |
EDAC Inc. | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder | 10 Áin | 0.25 Ám | Panel Mount Through Hole | 0.156 in | 3.96 mm | |
EDAC Inc. | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | ||
EDAC Inc. | Floating Bobbin Flush Mount | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 0.116 in | 2.95 mm | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Card Extender | |||
EDAC Inc. | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 0.128 " | 3.25 mm | Card Extender |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder | 10 Áin | 0.25 Ám | Panel Mount Through Hole | |||
EDAC Inc. | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 0.128 " | 3.25 mm | ||
EDAC Inc. | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | 16 | 2 | Female | Gold | Semi Bellows | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | Copper Alloy | Solder | 10 Áin | 0.25 Ám | Panel Mount Through Hole | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
355-032 Series
32 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
