84241022

Active

Murrplastik Systems, Inc.

CABLE GLAND 18.01-21MM M32

Search across all available documentation for this part.

Active

Murrplastik Systems, Inc.

CABLE GLAND 18.01-21MM M32

Technical Specifications

Parameters and characteristics for this part

Specification	84241022

Color	Silver
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material	Stainless Steel
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M32x1.5
Type	Cable Gland

Part	Thread Size	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Color	Material	Type
Murrplastik Systems, Inc. 84241022	M32x1.5	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	21 mm	0.827 in	-40 °C	120 °C	0.709 in	18.01 mm	8 mm	0.315 in	Silver	Stainless Steel	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1278.37

General part information

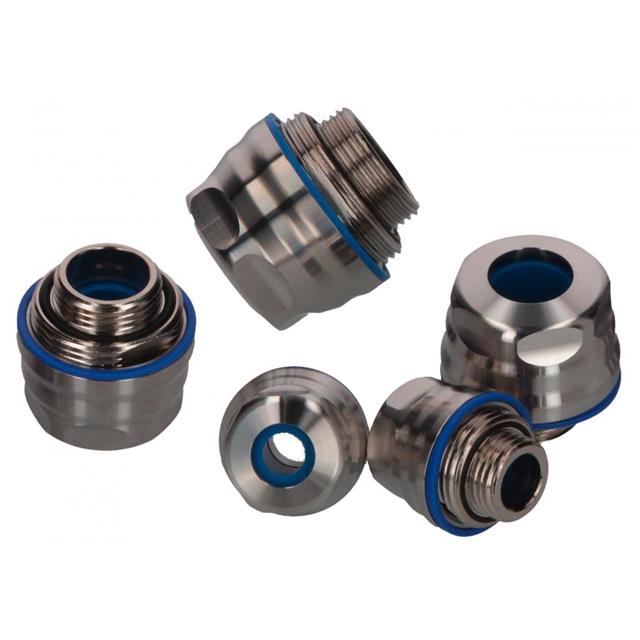

Cable Gland Stainless Steel M32x1.5 Silver

Technical documentation and resources

No documents available
