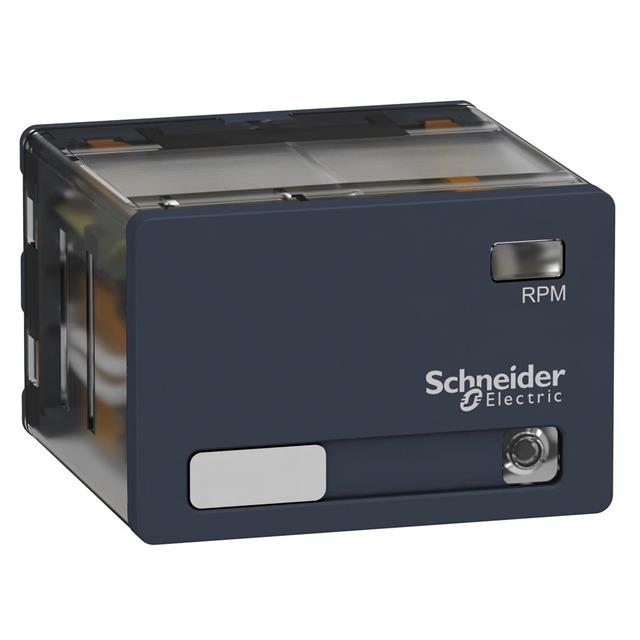

RPM43F7

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, POWER PLUG-IN RELAY, 15

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, POWER PLUG-IN RELAY, 15

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Must Operate Voltage	Contact Rating (Current)	Operate Time	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Mounting Type	Termination Style	Switching Voltage	Release Time	Features	Coil Resistance	Coil Current	Relay Type	Must Release Voltage	Contact Material	Contact Form	Coil Voltage
SQUARE D BY SCHNEIDER ELECTRIC RPM43F7	CSA EAC UL	96 VAC	15 A	20 ms	Non Latching	-40 °C	55 °C	420 W 3750 VA	Socketable	Plug In	28 VDC 250 VAC	20 ms	Lighted Indicator	2.1 kOhms	57.1 mA	General Purpose	18 VAC	Silver Nickel (AgNi)	4PDT (4 Form C)	120 VAC
SQUARE D BY SCHNEIDER ELECTRIC RPM43P7	CSA EAC UL	184 VAC	15 A	20 ms	Non Latching	-40 °C	55 °C	420 W 3750 VA	Socketable	Plug In	28 VDC 250 VAC	20 ms	Lighted Indicator	7.35 kOhms	31.3 mA	General Purpose	34.5 VAC	Silver Nickel (AgNi)	4PDT (4 Form C)	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.07

General part information

General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
