T18SP6LPQP

Obsolete

BANNER ENGINEERING

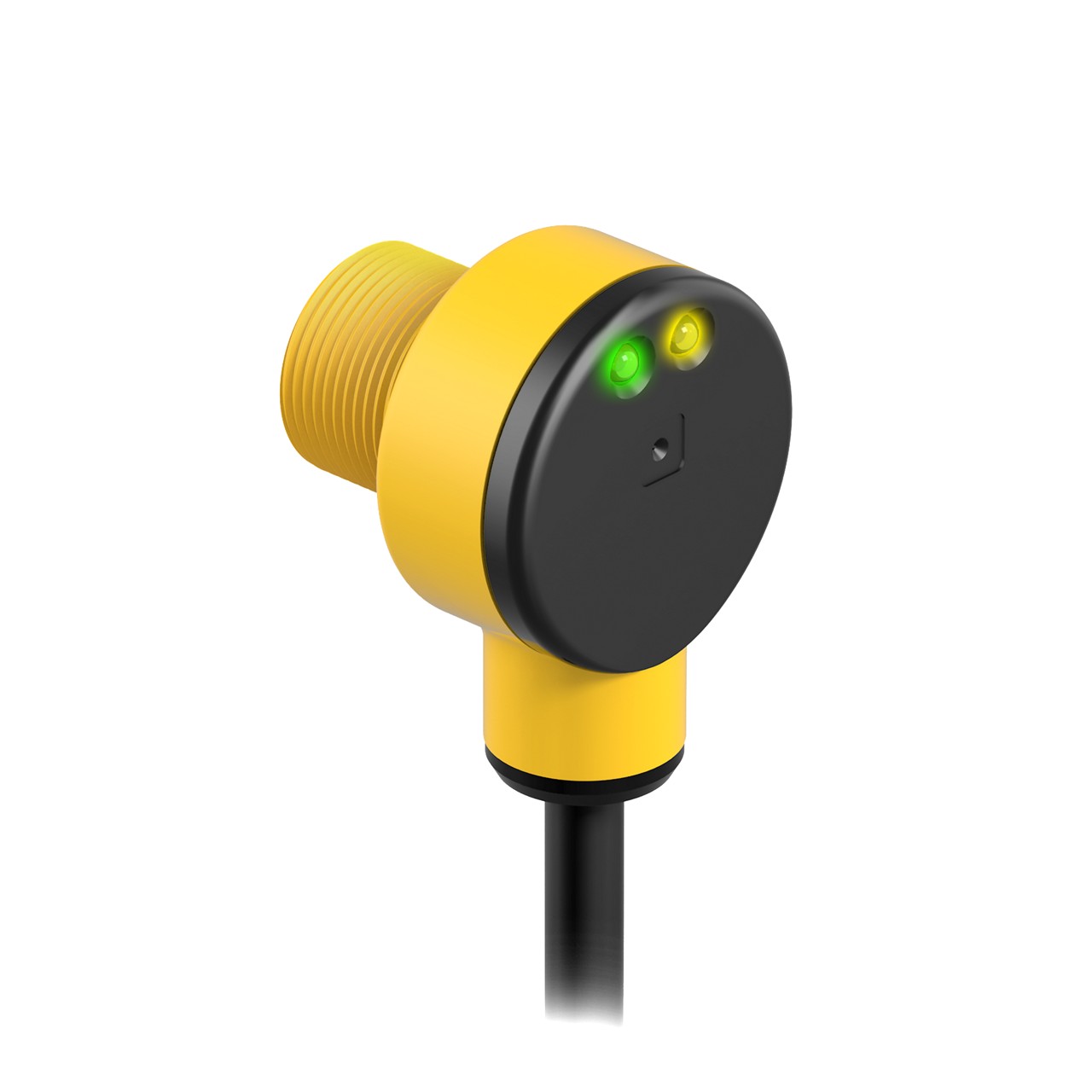

T18SP6LPQP 6 IN EURO PIGTAIL

Deep-Dive with AI

Search across all available documentation for this part.

T18SP6LPQP

Obsolete

BANNER ENGINEERING

T18SP6LPQP 6 IN EURO PIGTAIL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T18SP6LPQP

Connection Method	Connector
Ingress Protection	IEC IP69K, IEC IP67, NEMA 6P
Light Source	Red LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	3 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

T18SP6 Series

Part	Ingress Protection	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Connection Method	Light Source	Cable Length	Cable Length
BANNER ENGINEERING T18SP6FF100Q	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	Background Suppression	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	3.937 in	100 mm	Connector	Infrared
BANNER ENGINEERING T18SP6FF100QPMA	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	Background Suppression	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	3.937 in	100 mm	Connector	Infrared
BANNER ENGINEERING T18SP6FF50Q	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	Background Suppression	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	1.969 in	50 mm	Connector	Infrared
BANNER ENGINEERING T18SP6DQ	IP69K NEMA 6P	3 ms	-40 °C	70 °C	Diffuse	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	19.685 in	50 cm	Connector	Infrared
BANNER ENGINEERING T18SP6D	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	Diffuse	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	19.685 in	50 cm	Cable	Infrared	78.74 in	2 m
BANNER ENGINEERING T18SP6LPQP	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	Polarized Retroreflective	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	78.74 "	2 m	Connector	Red LED
BANNER ENGINEERING T18SP6LQ	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	NonPolarized Retroreflective	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	78.74 "	2 m	Connector	Infrared (950nm)
BANNER ENGINEERING T18SP6RQ	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	Through-Beam	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	787.402 in	20 m	Connector	Infrared (950nm)
BANNER ENGINEERING T18SP6R	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	Through-Beam	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	787.402 in	20 m	Cable	Infrared (950nm)	78.74 in	2 m
BANNER ENGINEERING T18SP6LPQ	IEC IP67 IEC IP69K NEMA 6P	3 ms	-40 °C	70 °C	Polarized Retroreflective	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	78.74 "	2 m	Connector	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

T18SP6 Series

Retroreflective, Polarized Optical Sensor 78.740" (2m) PNP - Dark-ON/Light-ON - Selectable
