SMP-02V-BC
ActiveJST Sales America Inc.

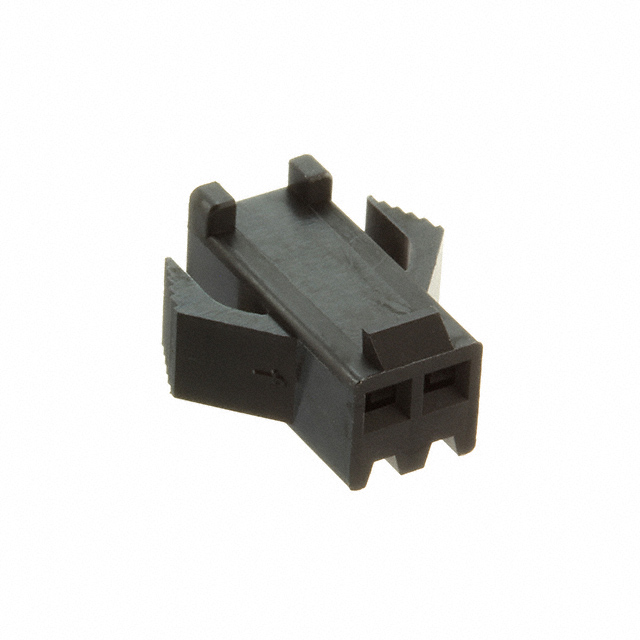

CONN PLUG HSG 2POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
SMP-02V-BC
ActiveJST Sales America Inc.
CONN PLUG HSG 2POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMP-02V-BC |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA6), Nylon 6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.11 | |
| 10 | $ 0.09 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.06 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.05 | |||
| 2500 | $ 0.04 | |||
Description
General part information
SMP-02V Series
2 Rectangular Connectors - Housings Plug Black 0.098" (2.50mm)
