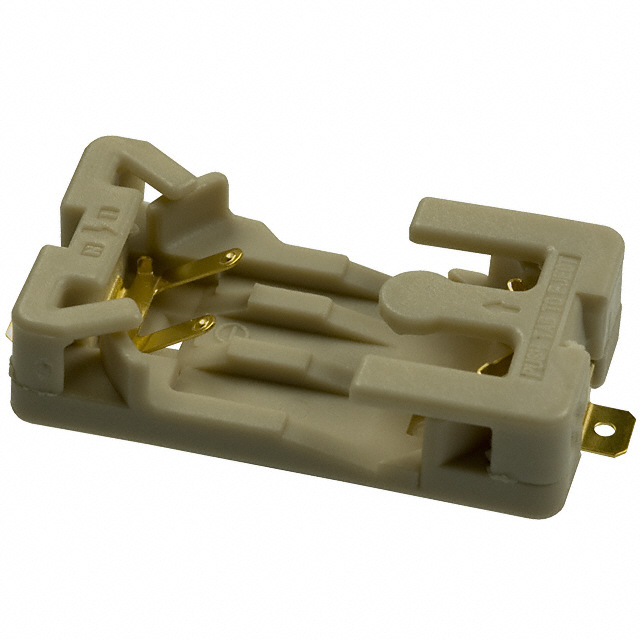

BA2032SM
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 20MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
BA2032SM
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 20MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BA2032SM |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Series | 2032 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board | 6.7 mm |
| Height Above Board | 0.264 " |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 225 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.78 | |
| 10 | $ 1.50 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.14 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 1.00 | |||
| 2500 | $ 0.91 | |||
| 5000 | $ 0.83 | |||
Description
General part information
BA2032 Series
Battery Holder (Open) Coin, 20.0mm 1 Cell SMD (SMT) Tab
Documents
Technical documentation and resources
