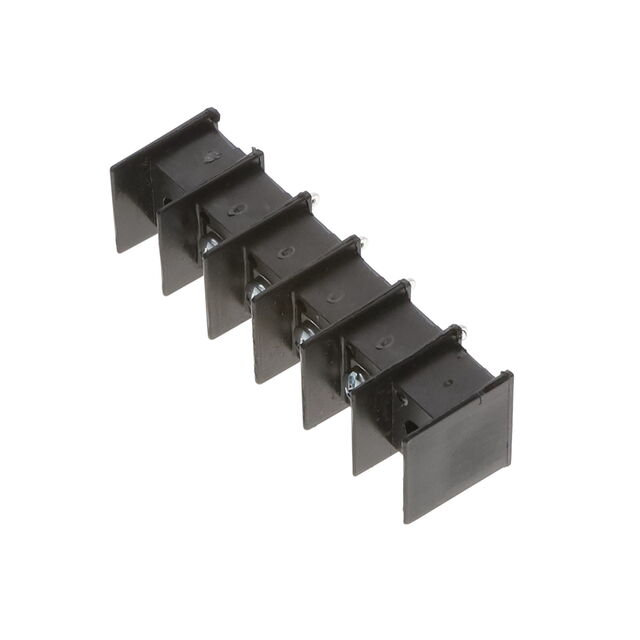

430300-04-0
ActiveCurtis Industries
CONN BARRIER STRIP 4CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
430300-04-0
ActiveCurtis Industries
CONN BARRIER STRIP 4CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430300-04-0 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Quick Connect |
| Bottom Termination | 0.11 in |
| Current Rating (Amps) | 20 A |
| Features | Flange |
| Material - Insulation | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 4 |
| Number of Rows | 1 |
| Number of Wire Entries | 4 |
| Operating Temperature | 105 C |
| Pitch [x] | 11.12 mm |
| Pitch [x] | 0.438 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
430300 Series
| Part | Top Termination | Barrier Type | Pitch [x] | Pitch [x] | Current Rating (Amps) | Mounting Type | Features | Number of Wire Entries | Material Flammability Rating | Terminal Screw Finish | Operating Temperature | Voltage Rating | Material - Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Number of Circuits | Number of Rows | Bottom Termination | Bottom Termination | Terminal Block Type | Terminal Screw Material | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | 13 | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 13 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | |
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | 25 | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 25 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | |
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | 16 | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 16 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | |
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 22 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | 22 | |
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | 17 | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 17 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | |
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | 15 | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 15 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | |
Curtis Industries | Screws | 2 Wall (Dual) | 20 A | Chassis Panel | Flange | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 1 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | 1 | |||
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | 4 | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 4 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | |
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | 5 | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 5 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel | |
Curtis Industries | Screws | 2 Wall (Dual) | 11.12 mm | 0.438 in | 20 A | Chassis Panel | Flange | 12 | UL94 V-0 | Zinc | 105 C | 600 V | Polypropylene (PP) | 12 AWG | 22 AWG | 12 | 1 | Quick Connect | 0.11 in | Barrier Block | Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.31 | |
| 10 | $ 3.28 | |||
| 25 | $ 3.07 | |||
| 50 | $ 2.73 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.46 | |||
| 500 | $ 2.23 | |||
| 1000 | $ 1.97 | |||
| 5000 | $ 1.86 | |||
Description
General part information
430300 Series
4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
