PQ2CF1J0000H
ObsoleteSharp Microelectronics

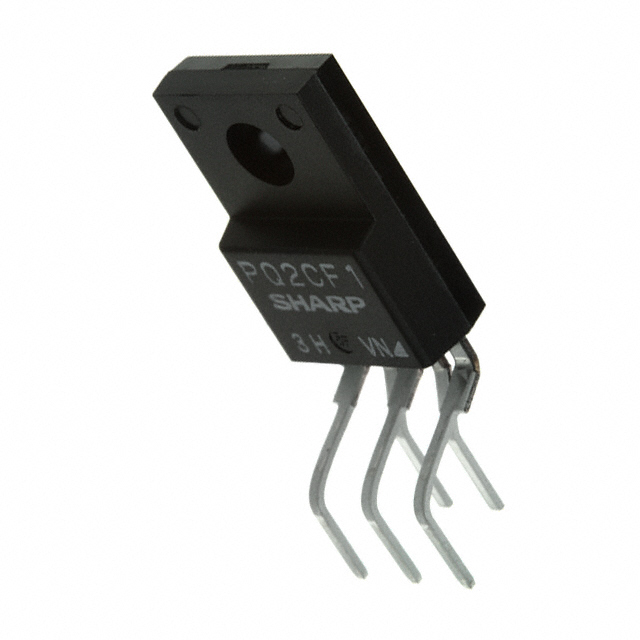

IC REG BST FLYBCK ADJ 2.5A TO220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PQ2CF1J0000H
ObsoleteSharp Microelectronics
IC REG BST FLYBCK ADJ 2.5A TO220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ2CF1J0000H |
|---|---|
| Current - Output | 2.5 A |
| Frequency - Switching | 50 kHz |
| Function | Step-Up, Step-Up/Step-Down |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220 |
| Synchronous Rectifier | False |
| Topology | Boost, Flyback |
| Voltage - Input (Max) [Max] | 10 V |
| Voltage - Input (Min) [Min] | 3.5 V |
| Voltage - Output (Max) [Max] | 35 V |
| Voltage - Output (Min/Fixed) | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PQ2CF1 Series
Boost, Flyback Switching Regulator IC Positive Adjustable 4.5V 1 Output 2.5A (Switch) TO-220-5 Formed Leads
