09000005153

Active

HARTING Technology Group

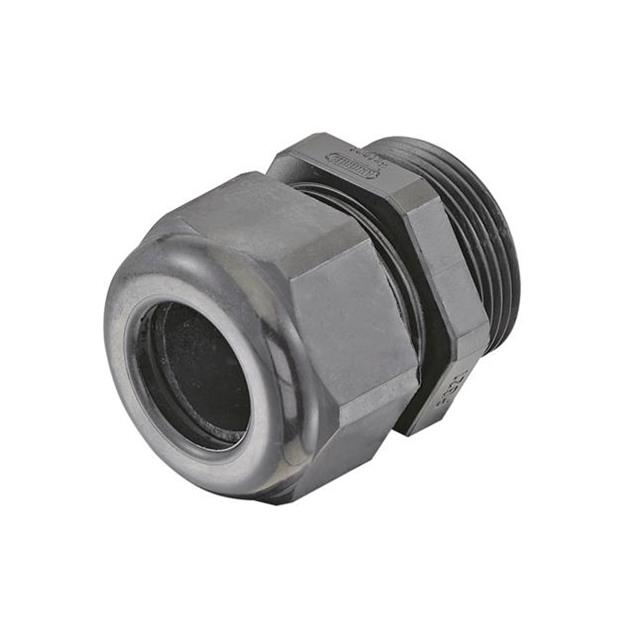

ACCES. PLASTIC CABLE SEAL PG21 ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

ACCES. PLASTIC CABLE SEAL PG21 ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09000005153

Ingress Protection	IP68 - Dust Tight, Waterproof
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm
Outside Cable Diameter (Min)	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in
Thread Length	14 mm
Thread Length	0.551 in
Thread Size	PG21
Type	Cable Gland

...

Part	For Use With/Related Products	Specifications [Min]	Specifications [Max]	Accessory Type	Type	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Thread Size	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Specifications
HARTING Technology Group 09000005067	Han® Housings	PG29 Thread	PG16 Thread
HARTING Technology Group 09000005208	Han® 16B Housings			Ground Terminal
HARTING Technology Group 09000005280	Han® 24B Housings			Ground Terminal
HARTING Technology Group 09000005339				Strain Relief
HARTING Technology Group 09000005090					Cable Gland	7 mm	0.276 in	Metal	-40 °C	130 °C	Silver	PG21	IP68 - Dust Tight Waterproof	0.413 in	10.5 mm
HARTING Technology Group 09000005256	Han® 6B Bases			Ground Terminal
HARTING Technology Group 09000005153					Cable Gland	13 mm	0.512 in					PG21	IP68 - Dust Tight Waterproof			0.709 in	18.01 mm	14 mm	0.551 in
HARTING Technology Group 09000005074	Han® Housings			Blanking Plug																PG29 Thread
HARTING Technology Group 09000005084					Cable Gland	7 mm	0.276 in	Metal	-40 °C	130 °C	Silver	PG13.5	IP68 - Dust Tight Waterproof	0.413 in	10.5 mm
HARTING Technology Group 09000005101					Cable Gland							PG11

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland PG21
