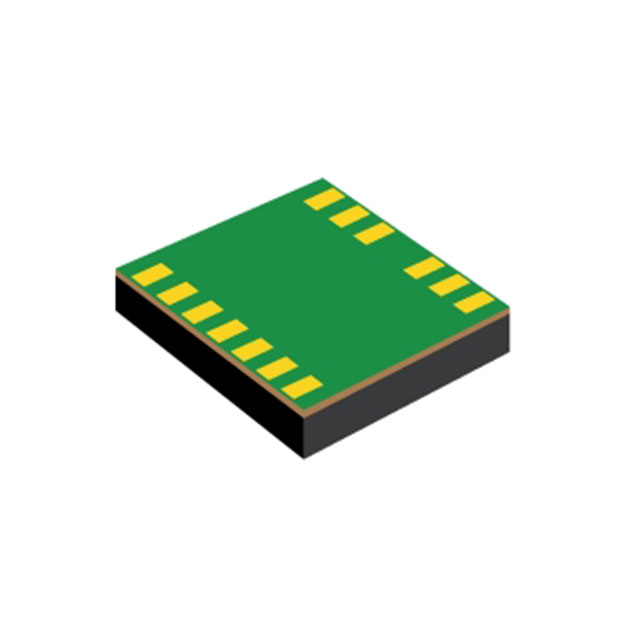

UCC20225NPLR

Active

Texas Instruments

2.5KVRMS, 4A/6A DUAL-CHANNEL ISOLATED GATE DRIVER WITH SINGLE PWM INPUT, 8V UVLO & LGA PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsExternal Gate Resistor Selection Guide (Rev. A)Understanding Peak IOH and IOL Currents (Rev. A)+8

UCC20225NPLR

Active

Texas Instruments

2.5KVRMS, 4A/6A DUAL-CHANNEL ISOLATED GATE DRIVER WITH SINGLE PWM INPUT, 8V UVLO & LGA PACKAGE

Deep-Dive with AI

DocumentsExternal Gate Resistor Selection Guide (Rev. A)Understanding Peak IOH and IOL Currents (Rev. A)+8

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC20225NPLR

Approval Agency	CQC, CSA, VDE, UR
Common Mode Transient Immunity (Min) [Min]	100 V/ns
Current - Output High, Low	4 A, 6 A
Grade	Automotive
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	13-VFLGA
Propagation Delay tpLH / tpHL (Max) [Max]	30 ns
Pulse Width Distortion (Max) [Max]	6 ns
Qualification	AEC-Q100
Rise / Fall Time (Typ) [custom]	7 ns
Rise / Fall Time (Typ) [custom]	6 ns
Supplier Device Package	13-VLGA (5x5)
Technology	Capacitive Coupling
Voltage - Isolation	2500 Vrms
Voltage - Output Supply [Max]	18 V
Voltage - Output Supply [Min]	3 V

UCC20225A-Q1 Series

Automotive 2.5kVrms, 4A/6A dual-channel isolated gate driver w/ single PWM input, 5V UVLO in LGA pkg

Part	Pulse Width Distortion (Max) [Max]	Mounting Type	Propagation Delay tpLH / tpHL (Max) [Max]	Package / Case	Common Mode Transient Immunity (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output High, Low	Voltage - Isolation	Supplier Device Package	Number of Channels [custom]	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Approval Agency	Grade	Qualification	Current - Peak Output
Texas Instruments UCC20225NPLT	6 ns	Surface Mount	30 ns	13-VFLGA	100 V/ns	7 ns	6 ns	4 A 6 A	2500 Vrms	13-VLGA (5x5)	2	Capacitive Coupling	125 °C	-40 °C	18 V	3 V	CQC CSA UR VDE
Texas Instruments UCC20225QNPLTQ1	6 ns	Surface Mount	30 ns	13-VFLGA	100 V/ns	7 ns	6 ns	4 A 6 A	2500 Vrms	13-VLGA (5x5)	2	Capacitive Coupling	125 °C	-40 °C	25 V	9.2 V	CQC UL VDE	Automotive	AEC-Q100
Texas Instruments UCC20225AQNPLRQ1	6 ns	Surface Mount	30 ns	13-VFLGA	100 V/ns	7 ns	6 ns	4 A 6 A	2500 Vrms	13-VLGA (5x5)	2	Capacitive Coupling	125 °C	-40 °C	25 V	6.5 V	CQC UL VDE	Automotive	AEC-Q100	4 A 6 A
Texas Instruments UCC20225AQNPLTQ1	6 ns	Surface Mount	30 ns	13-VFLGA	100 V/ns	7 ns	6 ns	4 A 6 A	2500 Vrms	13-VLGA (5x5)	2	Capacitive Coupling	125 °C	-40 °C	25 V	6.5 V	CQC UL VDE	Automotive	AEC-Q100	4 A 6 A
Texas Instruments UCC20225NPLR	6 ns	Surface Mount	30 ns	13-VFLGA	100 V/ns	7 ns	6 ns	4 A 6 A	2500 Vrms	13-VLGA (5x5)	2	Capacitive Coupling	125 °C	-40 °C	18 V	3 V	CQC CSA UR VDE	Automotive	AEC-Q100

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.07
		10	$ 3.66
		25	$ 3.46
		100	$ 3.00
		250	$ 2.84
		500	$ 2.55
		1000	$ 2.15
	Digi-Reel®	1	$ 4.07
		10	$ 3.66
		25	$ 3.46
		100	$ 3.00
		250	$ 2.84
		500	$ 2.55
		1000	$ 2.15
	Tape & Reel (TR)	3000	$ 2.04
Texas Instruments	LARGE T&R	1	$ 3.07
		100	$ 2.69
		250	$ 1.89
		1000	$ 1.52

Description

General part information

UCC20225A-Q1 Series

The UCC20225 is an isolated single input, dual-output gate driver with 4-A source and 6-A sink peak current in a 5-mm x 5-mm LGA-13 package. It is designed to drive power transistors up to 5-MHz with best-in-class propagation delay and pulse-width distortion.

The input side is isolated from the two output drivers by a 2.5-kVRMSisolation barrier, with minimum 100-V/ns common-mode transient immunity (CMTI). Internal functional isolation between the two output-side drivers allows working voltage up to 700-VDC.

The UCC20225 allows programmable dead time (DT) through a resistor on DT pin. A disable pin shuts down both outputs simultaneously when it is set high, and allows normal operation when left open or grounded.
