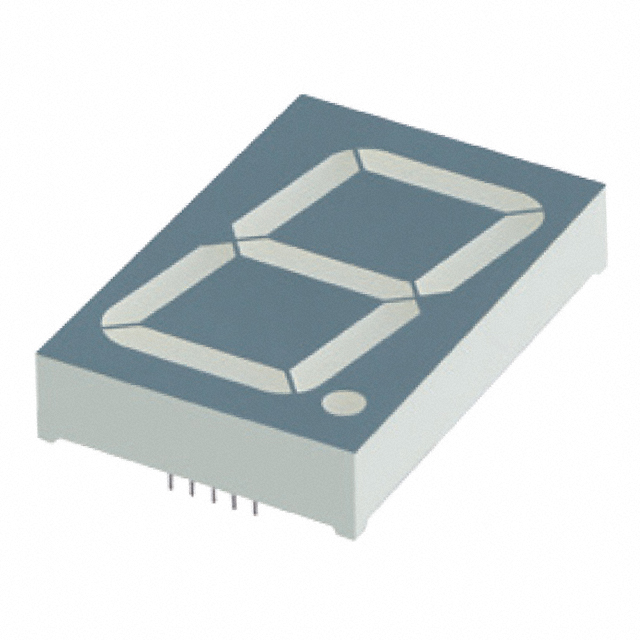

XDMYK46A

Active

SunLED

DISPLAY 7SEG 1.75" SGL YLW 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDMYK46A

Active

SunLED

DISPLAY 7SEG 1.75" SGL YLW 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDMYK46A

Color	Yellow
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	44.5 mm
Digit/Alpha Size	1.75 in
Display Type	7-Segment
Millicandela Rating	190 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case [x]	1.9 in
Package / Case [x]	48.26 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	2.205 in
Size / Dimension [x]	56 mm
Size / Dimension [y]	38 mm
Size / Dimension [y]	1.496 "
Size / Dimension [z]	11 mm
Size / Dimension [z]	0.433 in
Voltage - Forward (Vf) (Typ)	5.85 V
Wavelength - Peak	590 nm

XDMYK46 Series

Part	Power Dissipation (Max) [Max]	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Common Pin	Millicandela Rating	Number of Characters [custom]	Display Type	Package / Case [x]	Package / Case	Package / Case [x]	Color	Digit/Alpha Size	Digit/Alpha Size
SunLED XDMYK46A	75 mw	590 nm	5.85 V	11 mm	0.433 in	2.205 in	38 mm	56 mm	1.496 "	10 mA	Common Anode	190 mcd	1	7-Segment	1.9 in	10-DIP	48.26 mm	Yellow	44.5 mm	1.75 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	130	$ 3.75

Description

General part information

XDMYK46 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 5.85V 10mA 2.205" H x 1.496" W x 0.433" D (56.00mm x 38.00mm x 11.00mm) 10-DIP (1.900", 48.26mm)
