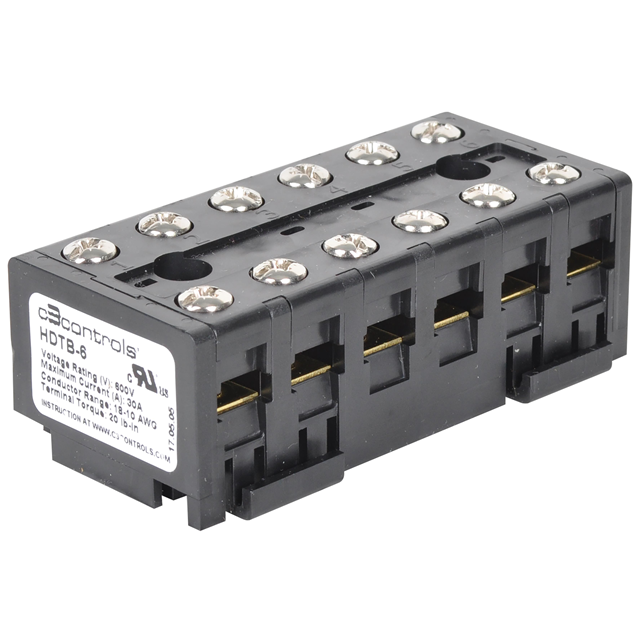

HDTB-6
Activec3controls
HIGH DNSTY TB - 6 POINT ASSEMBLY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDTB-6 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Black |
| Current Rating (Amps) | 30 A |
| Mounting Type | DIN Rail, Chassis, Panel |
| Number of Circuits | 6 |
| Number of Rows | 2 |
| Number of Wire Entries | 12 |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.91 | |
Description
General part information
HDTB Series
6 Circuit Barrier Block Connector Screws
