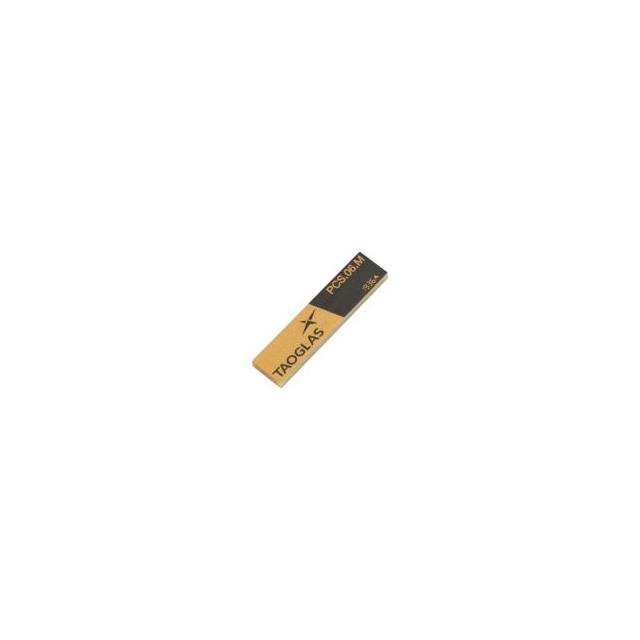

PCS.06.M

Active
TAOGLAS

RF ANTENNA, 2.49 TO 2.69GHZ, 2G/3G/4G/CELLULAR/LTE /GSM/CDMA/UMTS/HSDPA/GPRS/EDGE, 2.9DBI, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
PCS.06.M - PCS.06.M

PCS.06.M

Active
TAOGLAS

RF ANTENNA, 2.49 TO 2.69GHZ, 2G/3G/4G/CELLULAR/LTE /GSM/CDMA/UMTS/HSDPA/GPRS/EDGE, 2.9DBI, 50 OHM

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPCS.06.M
Antenna TypeFlat Bar
ApplicationsLTE, 2G, 4G, 3G
Frequency (Center/Band)829 MHz, 1.472 GHz, 2.59 GHz, 1.955 GHz, 2.45 GHz
Frequency GroupWide Band
Frequency Range [Max]1.518 GHz, 960 MHz, 2.69 GHz, 2.5 GHz, 2.2 GHz
Frequency Range [Min]2.49 GHz, 698 MHz, 1.427 GHz, 1.71 GHz, 2.4 GHz
Gain0.5 dBi, 1 dBi, 2.6 dBi, 2.9 dBi, 3.4 dBi
Height (Max)3 mm
Height (Max) [Max] [z]0.118 in
Mounting TypeSurface Mount
Number of Bands [custom]5
Power - Max [Max]5 W
RF Family/StandardCellular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 3.18
100$ 2.92
500$ 2.87
Digi-Reel® 1$ 3.18
100$ 2.92
500$ 2.87
Tape & Reel (TR) 1000$ 2.64
NewarkEach (Supplied on Cut Tape) 1$ 3.28
10$ 3.21
25$ 3.14
50$ 3.08
100$ 3.01
250$ 2.98
500$ 2.95
1000$ 2.30

Description

General part information

PCS.06 Series

RF ANTENNA 2G, 3G, 4G, LTE Flat Bar Surface Mount
